| US$3,000.00-30,000.00 | 1 Piece (MOQ) |
| Main System | ||
| Cabin system | Wall panel | -Sandwich style EPS 50mm,0.5mm thick steel, anti-flame and heat-insulation. -High quality galvanized steel roof panel. |

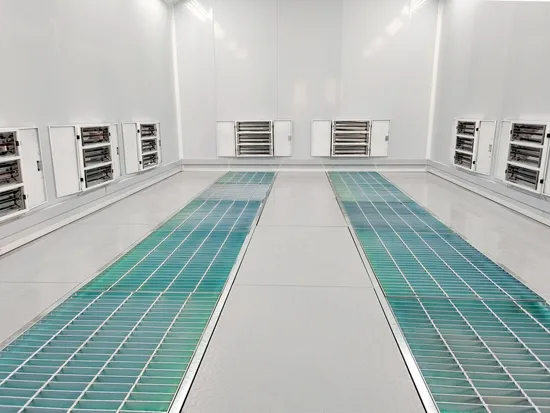

| Basement | -Galvanized steel assemble,280mm high,quadrate steel support,2 rows of grills with 30*5mm,3 rows of diamond plates. -2 ramps,external setting,620*2000mm(W*L)/pc | |
| Ventilation system | Inlet fan | 2*4kw double-intake centrifugal fans, air capacity:12500m³/h for each set |
| Outlet fan | 1*7.5kw double-intake centrifugal fan, air capacity:18000m³/h for each set | |
| Cabinet setting type | -Intake air from side upper ,adopt powder quadrate steel frame , strong and beautiful . -Cabinet for the fan*1unit ,air duct*1unit, -Elbow:90°*1 unit | |
| Heating system | Burner | Italy RIELLO G20 oil burner, heating capacity: 180000Kcal/h, with pneumatic damper from spraying to baking cycle |
| Heat Exchanger | 1.5mm thickness SUS304 stainless steel | |
| Cabinet | Rock-wool insulation*1 unit, heat insulation and preservation,inflaming retarding | |
| Lighting system | Ceiling lights | 8*4pcs*16w LED lighting |
| Side lights | 8*4pcs*16w LED lighting | |
| Filtering system | Primary filter | Grade G2 plate type , filtering rate>83% |
| Ceiling filter | EU5 grade high efficient filter,filtering rate>98% | |
| Floor filter | Multi-layer fiberglass filter,filtering rate>70% | |
| Control system | Control panel | Intelligent control system |
| Function | Lighting, temperature time setting, painting, constant temperature painting, baking,emergency stop, failure indication, time accumulate, etc | |
| Total power | 16.5KW | |
| Voltage/Frequency | 380V,50HZ,3 phase | |
