1, 2 Core FTTH Indoor Drop Wire Fiber Optic Cable Optical Fiber Cable

Product Description

2 Core FTTH Indoor Drop Wire Fiber Optic Cable Note: We can print your brand name on the outer sheath of the cable for free
Description:

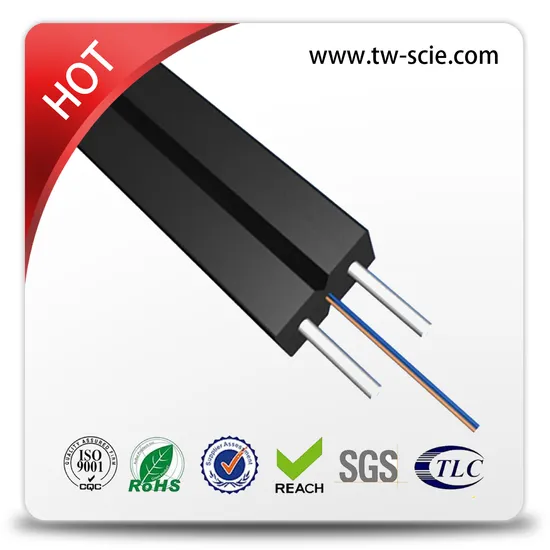

The FTTH drop cable is positioned in the centre. Two parrallel fiber reinforced plastics(FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then, the cable is completed with a black or color PVC/LSZH sheath. The typical self-supporting bow-type drop fiber optic cable consists of GJXFH/GJXH cable and an additional strength member (steel wire or stranded steel wire).

Characteristics:
1.Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
2.Two parallel FRP/ steel strength members ensure good performance of crush resistance to protect the fiber.
3. Novel groove design, easily strips and splice, simplified installation and maintenance, higher tensile strength.
4. Single Steel wire as the additional strength member ensures good performance of tensile strength.
5. Simple structure-light weight and high practicability.
6. Novel flute design, easily strip and splice, simplify the installation and maintenance.
7. Low smoke, zero-halogen and flame retardant sheath, environment-friendly, good safe.
Application:
1.High-performance optical network operating
2.High-speed optical routes in buildings (FTTH)
3. Suitable as cable extending from outdoor (as aerial cable) to indoor
Standards:
Comply with standard YD/T 1997-2009,ICEA-596,GR-409,IEC 60794.
FTTH drop cable Technical Data:

Items			Specifications
Fiber Count			2
Colored Coating Fiber	Dimension		250mm±15μm
	Color		Blue,Orange
Tight buffer			0.9mm Tight buffer no jelly
Supporting messenger wire		Dimension	0.33* 7
		Material	Galvanized steel wire strands
Strength member		Dimension	0.45mm±0.10
		Material	FRP (or steel wire)
Outer Jacket		Material	PVC/LSZH
		Color	Black
Cable Diameter dimensions			2.0( Height) × 5.3 W ± 0.1 mm(width)

Optical fiber data:

No.	Items		Unit	Specification
				G.652D
1	Mode Field Diameter	1310nm	μm	9.2±0.4
		1550nm	μm	10.4±0.5
2	Cladding Diameter		μm	125±0.5
3	Cladding Non-Circularity		%	≤0.7
4	Core-Cladding Concentricity Error		μm	≤0.5
5	Coating Diameter		μm	245±5
6	Coating Non-Circularity		%	≤6.0
7	Cladding-Coating Concentricity Error		μm	≤12.0
8	Cable Cutoff Wavelength		nm	λcc≤1260
9	Attenuation(max.)	1310nm	dB/km	≤0.36
		1550nm	dB/km	≤0.22

Mechanical and Environmental Characteristics:

Items	Unit	Specifications
Tension(Long Term)	N	500
Tension(Short Term)	N	800
Crush(Long Term)	N/100mm	1000
Crush(Short Term)	N/100mm	2200
Min. Bend Radius(Dynamic)	mm	20D
Min. Bend Radius(Static)	mm	10D
Installation Temperature	ºC	-0ºC to + 60ºC
Operating Temperature	ºC	-20ºC to + 70ºC
Storage Temperature	ºC	-20ºC to + 70

Note:
1.Not all the FTTH cables are in the list. 1,2,4,6,8 fibers are available. Steel wire/FRP/KFRP material of strength member and messenger wire are available.
2.Cables can be supplied with a range of single mode or multimode fibers.
3.The dimensions and raw materials can be designed according to the demand of the customers.
4.Standard Reel Length: 1000m/reel: other lengths available on request.

Packaging & Shipping *Standard Packaging: The FTTH drop cable is rolled by Plastic Reel or wooden drum.1KM /drum or other required.
*Sheath markThe following printing(white hot foil indentation)is applied at 1-meter intervals.:
a. Supplier: TW-SCIE or as customer required
b. Standard Code(Product Type, Fiber Type, Fiber Count)
c. Year of manufacture: xxx
d. Length marking in meters
Shipping: we have shipping department with professional guys work together with the experienced shipping agent overall the world.

Dong Guan Tw-Scie Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own importers and exporters rights. Since its founding, high-quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication
Manufacturer supplier and engineering service provide the most completed product line-up and specifications in the fiber and cable industry of China.
The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with much scientific research academy.
The main products of our enterprise are:
Drop cable, optical cable, drop cable, Optical media converter, optical transceiver, optical coupler, an optical modem, optical connector, optical distribution frame.
All of the products are widely used in telecom, electric power, railway and another related department, exporting France, India, Singapore, Malaysia.

---
