4 Axis Rotated Spindle Atc CNC Router Machine 1530 for Foam EPS Wood Mold Making

Product Description

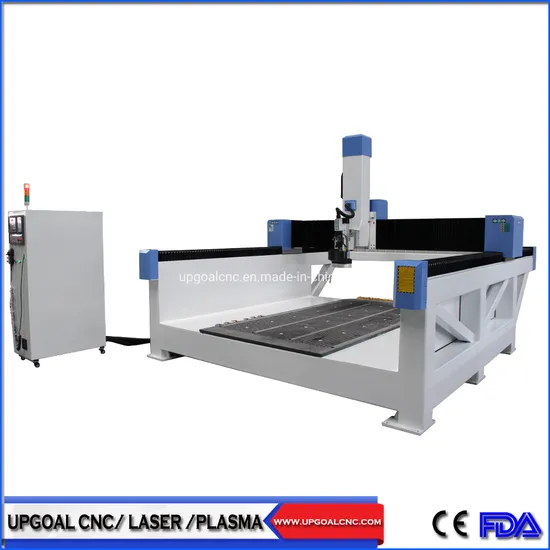

4 Axis Rotated Spindle ATC CNC Router 1530 for Foam EPS Wood Mold Making
Application
Such 0-180degree rotating spindle cnc router can make different surface carving, arc-surface milling, bending surface machining for 4D jobs,like special shaped arts, bend doors or cabinets, also can make horizontal milling,cutting and drilling works.
Also widely used for :carve and cut on any kind of Foam (EPS) , do 2D and 3D dimension processing.
Applied in material like Solid wood, MDF, foam, plastic, stone, aluminium, copper, PVC and other hard and soft materials.

Features
1. Welded strong steel tube structure as a whole with vibration temper aging treatment ensures no deformation for long time.

2. Heavy lathe bed adopts strong square steel tube to avoid the distortion.
3. 700mm Z-axis feeding height & effective travelling for heavy and thick materials.
4. Spindle rotated 180 degree, you can make 2D/3D/4D carving on curved surface, arc-surface,bending surface, larger dimension mould, statues, sculptures, cylinders and so on...
5.Powerful 9KW China HQD ATC air cooling spindle , can move 0-180 degree.

6. Japan Yaskawa 850W servo motor and driver for XYZ-axis, ensuring the processing speed & precision.

7.Japan Shimpo Reducer for servo motor, used for replace traditional rack and belt,to make machine more powerful and stable.

8. 4 axis SYNTEC 6MB control system with industrial control system and hand wheel, safe and reliable operation, efficient speed to read the code, and have the online analog functions, on-line monitoring function to ensure efficient and safe processing.
9. Adopted the advanced Linear ATC system which can change 12 pieces tools intelligently. Tools changing time is within 10 seconds greatly improved production efficiency.
10. Imported Hiwin Taiwan diameter 30mm linear guide rail with Ball bearing slide block which ensure High Weight capacity, high precision, smooth and steady running.
11.Vacuum adsorption and dust collection system: vacuum adsorption table, adopted bakelite table, high density, no deformation and high adsorption, can for different size materials adsorption, saving time compared the traditional mechanical plate fixing; Dust collector helps to suck the dust, milling dust, saw dust during processing, keeping the working table cleaning and ensuring the machine long time using.
12. With independent SYNTEC control cabinet
13. Auto tool calibration, more convenient for each time Z-axis 0 point setting.
14. Auto lubrication system more convenient for maintenance.

15.Advanced files pre-reading and verifying function. Mistakes in G code files can be corrected timely.
16. Favorable compatibility with various CAM software such as Type3/Artcam/Mastercam/Caxa.
17. Advance prediction algorithm for three-dimension curve which ensured stable curvilinear motion with suitable speed and precision.
18. With the function of break-point memory ,power failure resuming and automatic home/origin correction function, effectively ensure long time working precision.
Technical Parameters

Effective working area	1500(X)mm*3000(Y)mm*700(Z)mm
Materials	Heavy duty steel pipe welded machine holder bed, cast iron gantry
Working table	Vacuum table with aluminum T slot working table
Moving type	Gantry moving
Guide rail	Linear square guide rail ( Hiwin, Taiwan)
Transmission	Helical rack &pinion for X Y -axis, Lead ball screw for Z-axis
Driving mode	Japan Yaskawa 850W servo motor and driver with reducer( Shimpo, Japan)
Spindle motor	9.0KW China HQD ATC air cooling spindle( 0-180° rotating)
Spindle speed	0-18000rpm
Tools changing method&quantity	Linear auto tool changer (12 pcs)
Inverter	Delta, Taiwan
Voltage	AC 380V/220V± 10%, 50/60Hz, three phases
Maximum traveling speed	60000-800000mm/min
Maximum engraving speed	25000-40000mm/min
Machine accuracy	0.01mm
Control system	SYNTEC6MB control system( Taiwan)
Hand wheel	SYNTEC HPG( hand pulse generator)
Suitable software	Artcam, Type3, Ucancam V9,etc
Carving Instructions	G code *Uoo *mmg *plt HPGL
Running environment temperature	0-45 ºC
Relative humidity	30%-75%
Dedusting device	Dust collector
Lubrication system	Auto
Tool calibration	Auto
Certificate	CE
