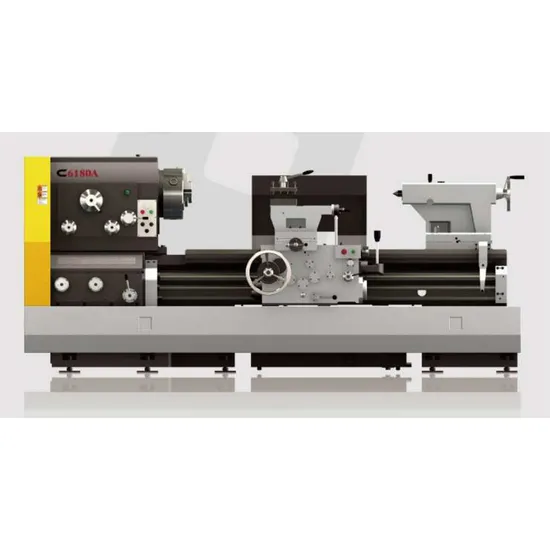

Horizontal Lathe Turning Machine Tool

Product Description

Product Description
Suitable for a variety of turning work, such as turning inside and outside cylindrical surface, cone surface, and other rotary surface, end surface, but also can process a variety of common threads - such as metric, inch, modulus, diameter pitch thread, as well as drilling, reaming, tapping, broaching groove and other work.
1. High torsion horizontal bed, high-quality cast iron carefully made, and the guide rail surface induction hardening precision treatment, bed surface width 560mm;

2. The guide pair composed of the soft tape of the teflon guide rail is wear-resistant, vibration-absorbing and has good accuracy retention;

3. The main shaft adopts three support structure, good rigidity, high precision, and strong cutting. The diameter of the main shaft through hole is φ105mm;

4.14 wide speed range, can choose a more reasonable speed;

5. Can directly turn metric and inch threads;

6. Spindle rotation can be point control, fast braking
Product Parameters

Specifications
PARAMETERS
ITEMS		UNIT		C6163B	CS6180A
Capacity
Max. swing dla. over bed		mm		Φ 660	Φ830
Max. swing dla. over cross slide		mm		Φ400	Φ540
Max. workpiece length		mm		1500/3000
Max.turning length		mm		1400/2900
Spian of bed ways		mm		560
Spindle
Spindle bore diameter		mm		Φ105
Taper of spindle bore				1/20 metric taper
Type of spindle nose				AI-11
Spindle speeds		r/min		Morse No.6
Feeds and threads
Max. travel of upper toolpost		mm		200
Max. travel of lower toolpost		mm		480	515
Tool section		mm		32x32
X-axis feeds		mm/r		0.031-3.5 56 kinds
Z-axis feeds		mm/r		0.062 - 7.0 56 kinds
Metric threads		mm		0.5 - 28 31 kinds
Inch threads		t.p.i		56-1 38 kinds
Module threads		π mm		0.25 ~ 7 21 kinds
Diametric pitch threads		DP		564 27 kinds
Tailstock
Diameter of quill		mm		Φ100
Max. travel of quill		mm		250
Taper of qulll(Morse)				Morse No.5
Motor
Main motor power		kW		11
Coolant pump motor power		kW		0.18
Others
Length	mm		3500/5000
Width	mm		1260		1370
Height	mm		1385		1470
Weight	kg		4200/4960		4500/5300

Detailed Photos
14 speed range
Tailstock sleeve has carved lines for more intuitive use
Cross control lever

---
