Hight quanlity titanium product

Product Details

Product Description

Product Description
Product Description

Product Description

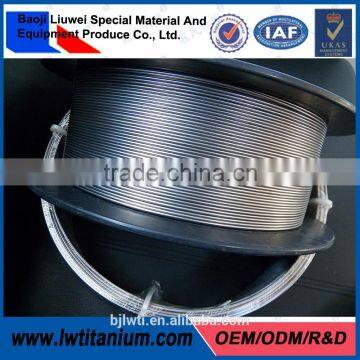

Name	titaium wire
Standard	aws a5.16, astm b863, ams4951, ams4954, jis h4670
Grade	gr1,gr2,gr5,gr6,gr7,gr12
Diameter	Φ0.1-7mm
Supply status	M, R, Y
Method of process	ingots → forging → rolling → wire drawing → wire
Surface	clean the surface of pickling
Certificate	ISO 9001:2008; The third test report
	TÜV Rheinland; Supplier Assessment Certificate

The wire always provide as a coil with not reel. Please tell us if you have any requirements.
Generally the straight wire could provide above dia 1.0mm and the length is less than 3000mm.

ASTM B863	UNS No.	Chemical Specifications
		C	Fe	H	N	O	Al	V	Sn	Pd	Mo	Ni
gr1	R50250	0.05	0.15	0.012	0.03	0.12	——	——	——	——	——	——
gr2	R50400	0.05	0.20	0.012	0.03	0.18	——		——	——	——	——
gr5	R56400	0.05	0.25	0.012	0.05	0.18	5.5-6.75	3.5-4.5	——	——	——	——
gr6	R54520	0.05	0.45	0.012	0.05	0.15	4.0-6.0	——	2.0-3.0	——	——	——
gr7	R52400	0.05	0.20	0.012	0.03	0.18	——	——	——	0.12-0.25	——	——
gr12	R53400	0.05	0.25	0.012	0.03	0.20	——	——	——	——	0.2-0.4	0.6-0.9

In the fact, the tensile and the elongation is considering about the wire's chemical component and dia.

grade	diameter	room temperature
		TS (Rm/MPa)	E (A/%)
Gr1	0.1 to ≤4.0	≥240	≥15
	4.0 to 7.0	≥240	≥24
Gr2	0.1 to ≤4.0	≥400	≥12
	4.0 to 7.0	≥400	≥20
Gr5	≥2.0 to 7.0	≥895	≥10

---
