US$4,500.00-7,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Processing Object
Animal-Derived Feed
Processing Technics
Mixing-before-Crushing
Screen Mesh
With Screen Mesh
Grinding Equipment Type
Feed Hammer Mill
Pellet Mill Type
Ring Die Pelleter
Bulking Machine Type
Single Screw Bulking Machine
Expanding Method
Dry Expansion
Applicable Materials Shape
Powder
Feed Pellet Machine Capacity
1-2tons
Feed Pellet Machine Main Power
22kw
Animal Food Making Inside of Ring Die
250mm
Power of Screw Feeder
0.55kw
Power of Conditioner
2.2kw
Application
Chicken Farm, Cattle Plant, etc
After Warranty Service
Video Technical Support, Online Support
Suit for
Cow.Sheep.Goose.Duck.Chicken.etc
Key Words
Farm Poultry Feed Mill
Final Product
Animal Feed Pellet
Raw Material
Soybean, Fish Meal, Wheat, Grass, Alfalfa, etc
Transport Package
International Standard Package
Production Capacity
200sets/Month
Product Description

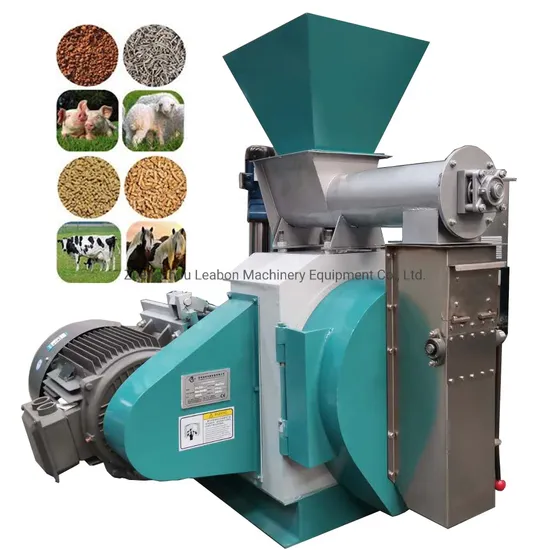

Introdcution of Goat/Rabbit Feed Pellet Foodstuff Fertilizer Machine
Product Description
1.the transmission gear direct connects with high precision, high transmission rate, stable work, ensure that the energy transferOutput 15%-20% high than belt transmission.
2.all stainless steel door,organic outside material and observation window, easy to operate
3.the machine drive system is key position of imported bearing, oil seal, long working life, low noise.
4.the machine steel feeder, varying pitch and arch structure frequency control of motor speed control.
5.add large stainless steel conditioning machine, using the axial inlet steam, greatly iproved the effect of tempering and curing time.
6.the whole machine is equipped with iron and overload protaction device, give full consideration to the temperaing and curing time.
Product Parameters
| Model | Main power
(kw) | Out-put
(t/h) | Power of Conditioner
(kw) | Power of screw feeder
(kw) | In-side of rind die
(mm) |
| SZLH250 | 22 | 0.5-1.5 | 2.2 | 0.55 | 250 |
| SZLH320 | 37 | 2-3 | 2.2 | 0.75 | 320 |
| SZLH350 | 55 | 3-5 | 3 | 0.75 | 350 |
| SZLH400 | 75/90 | 3-10 | 5.5 | 1.5 | 400 |
| SZLH420 | 90/110 | 3-14 | 5.5 | 1.5 | 420 |
| SZLH508 | 110/132/160 | 6-15 | 7.5 | 2.2 | 508 |
| SZLH558 | 180/200 | 10-20 | 11 | 2.2 | 558 |
| SZLH678 | 220/250 | 25-30 | 18.5 | 3 | 678 |
