Food Grade Stainless Steel Rice Revolving Screen

Product Description

About Us
Headquartered in Xinxiang City, Henan Province, China, domestic well-known screening and conveying equipment city, PK Machinery has enjoyed more than 50 steady years of successful growth, and now it has been widely acknowledged as a trustworthy and professional manufacturer in the field of bulk material handling equipment, including vibrating screen, vibrating feeder, belt conveyor, bucket elevator, screw conveyor, scraper chain conveyor and associated spare parts in complete specifications.
Product Description
Application and Working Principle
Adopting ROTEX Gyratory screener technology, PXZS Gyratory Vibrating Screen is widely used in abrasive, food, salt,sugar, chemical, pharmaceutical, mining, metallurgy, recycling industries, etc.

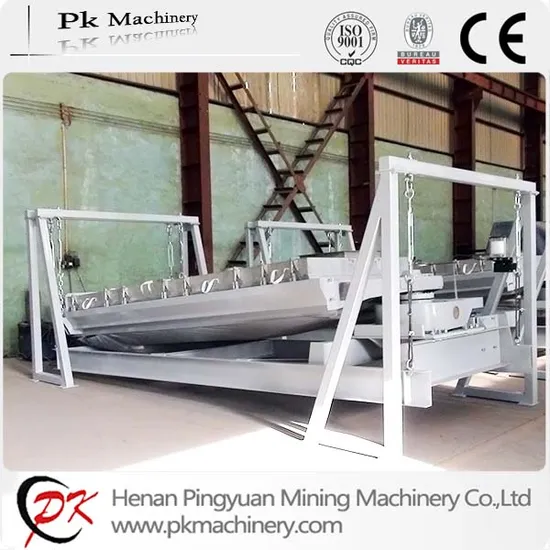

PXZS Gyratory Vibrating Screen is a high efficiency machine for separating materials according to particle size, consisting of top cover, screen frame, screen box, base and driving system. The installation is cable-suspension.

Utilizing a gyratory-reciprocating motion, gyratory screener gives a combination of actions to the materials as it passes along the screen surface. It begins with a horizontal circular motion at the feed end, gradually changes to elliptical motion at the center, and finally to a straight-line motion at the discharge end, keeping the material in constant contact with the screen surface.

Performance and Features

1).All components are easily accessible and removable for ease of disassembly and cleaning.
2).No vertical vibration, longer life span of mesh (6 - 12 months).
3).Each layer is installed an anti-blocking and cleaning facility and able to clean mesh while sieving.
4).Exterior is designed for easy cleaning. Exterior permanent joints are either welded continuously, or strip welded and filled with epoxy.
5).Lower headroom permits operation in confined areas, reducing cost of building and maintenance.
6).Conveying equipment is less required for elevating material to the feed point.
Product Parameters
Technical Data of Gyratory Screen

Model	Screen Surface Area (m2)	Layers NO.	Feeding Size (mm)	Amplitude (mm)	Frequency (r/min)	Model of Motor	Power (Kw)
PXZS1224	1200x2400	1-3	<15	75-90	1450	Y132S-4	5.5
PXZS1230	1200x3000	1-3	<15	75-90	1450	Y132S-4	5.5
PXZS1236	1200x3600	1-3	<15	75-90	1450	Y132S-4	5.5
PXZS1524	1500x2400	1-3	<15	75-90	1450	Y132S-4	5.5
PXZS1530	1500x3000	1-3	<15	75-90	1450	Y132S-4	5.5
PXZS1536	1500x3600	1-3	<15	75-90	1450	Y132S-4	5.5
PXZS1830	1800x3000	1-3	<20	75-90	750	Y160L-8	7.5
PXZS1836	1800x3600	1-3	<20	75-90	750	Y160L-8	7.5
PXZS1840	1800x4000	1-3	<20	75-90	750	Y160L-8	7.5
PXZS2036	2000x3600	1-3	<20	75-90	750	Y160L-8	7.5
PXZS1840	2000x4000	1-3	<20	75-90	750	Y160L-8	7.5

Model Selection Guidelines

Material property			Technical requirements
Material name			Capacity		TPH
Density		T/m3	Layers number
Moisture content		%	Sieve mesh size		mm
Temperature		ºC	Equipment material
Particle size distribution percentage		%	Voltage , frequency		V, Hz
Chemical property			Motor brand
Pictures is better			Installation space limit		mm
Technology : The machines before and after the vibrating screen
