Product Details
Product Description
Product Description

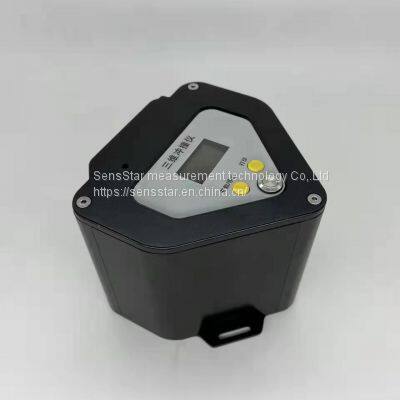

The TRK60 series transport impact recorder (Smart 3-Axis Shock recorder, Impact recorder, Shock data logger TRK60) by SensStar can record the 3-Axes acceleration,from 16g to 200g, impact, and overrun alarm impact data in the whole process of transport. It is suitable for the transport monitoring of important goods such as compact components, large-scale important equipment, transformer reactor, GIS bushing, etc. after arrival, you can select the time period to print the data on site, Trk60 series monitors can provide an important basis for the definition of responsibility in the process of transportation. The operation is super simple, easy to use, no training, can record up to three months to six months of data, through the LCD screen and indicator light to view the working status, overrun data, setting status and other common parameter information, simple and clear, no operation burden after purchase, en10311 procedures.
Characteristic:-Removable battery (rechargeable battery or large capacity battery), battery can be replaced freely
-IP67 protection, not afraid of rain
-Simple operation, one key to start recording, one key to print data
-In addition, parameters can be set, data can be downloaded and curves can be viewed by software through USB or Bluetooth wireless mode
-The contents of the data report include: RMS effective value of normal periodic vibration, peak value of over threshold impact, corresponding time, opening and ending time, and three-dimensional vibration curve of the whole cycle.
Product typeShock recorder ShockTracker - TRK60
Operating temperature
-40°C … +85°C
Shocks Sensor (3 axis)
-16g to +16g Standard, 200g available
Accuracy : +/- 0,1g
Resolution : 14 bits
Bandwidth : 1600 Hz
Measures Frequency
Can be set from one measure every one minute, to one every 24 hours.
Memory Capacity
32,000 measurements points, 6 months data at least (5min log rate)
Data historic files
Data compatible with EXCEL or PDF files
Data interface
Usb2.0
Print mode
Internal printer，on site built-in micro printer printing directly
Battery
charging battery or free replacement battery, which can be charged through USB interface
>>
