Air Compressor Rotor Refrigerator Screw CNC Spiral Rotor Milling Machine

Product Description

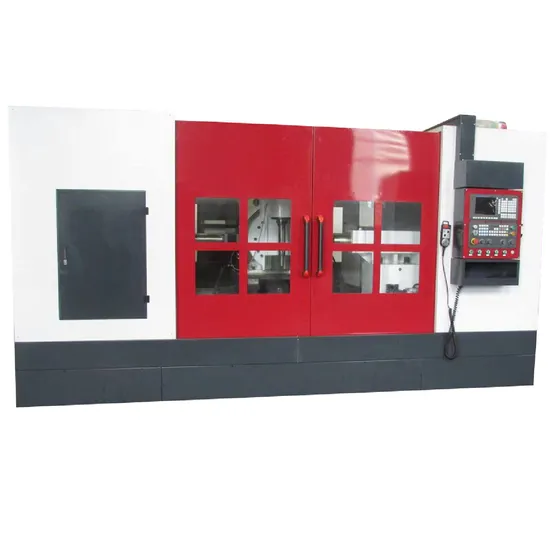

CLX220×1200 CNC spiral rotor milling machine

CLX220×1200 CNC spiral rotor milling machine is designed and processed by our factory. This machine adopts molding milling cutter to milling screw and screw turning workpiece, mainly suitable for air compressor, refrigerator, industrial pump and other products, large size spiral rotor spiral surface processing.
I. Machine tool structure features:
1, the machine adopts Guangzhou CNC system (four axis two linkage).
2, the machine adopts integral bed, four guide rail structure. Bed material is high strength cast iron, reasonable structure, good rigidity, high stability. The headcase and the tail seat are installed on the bed body, and the tail seat can be moved back and forth; The bed saddle moves back and forth on the bed through ball screws. The bed saddle is equipped with a skateboard, which is locked by disc spring. The milling head is mounted on a slide plate. The C and Z axes of the machine tool are equipped with grating ruler to ensure the machining accuracy.
3, machine tool guide rail using hard rail. Guide rail lubrication using centralized intermittent special lubrication pump lubrication, lubrication in time.
4, the feed shaft (Z axis, X axis) adopts high precision ball screw through servo motor direct drive to achieve no clearance transmission, high transmission accuracy, good positioning accuracy.
5, headstock (axis C) adopt variable tooth thickness worm gear drive, convenient to adjust the clearance. Servo motor direct worm, high precision and accurate indexing.
6, the milling head adopts high power frequency conversion motor, driven by synchronous belt + gear.
7. The feeding mode of tailstock sleeve is hydraulic feeding, which is convenient to remove the workpiece. The overall feeding of tailstock is rack and pinion structure, which is convenient to feed.
8, the milling spindle is A axis rotation, in order to determine the milling spiral Angle, with X, Z and C coordinate linkage, in the case of system programming to achieve automatic processing. A axis rotation using variable tooth thickness worm gear drive. Axis A is locked by disc spring.
9, the head of the machine is equipped with a special fixture, the machine is equipped with a special center frame
10. The machine is equipped with cooling device. Lubrication cooling effect is achieved through forced cooling.
11. The electrical components in the machine tool electrical control cabinet are all purchased from delixi, a well-known brand in China.
12, the machine is equipped with protective cover.
Machine structure and main technical parameters

project	content	unit
The length of the lathe bed	4200	mm
Bed width	1000	mm
Lathe bed structure	The four guide
Maximum machining diameter	Φ220	mm
Maximum workpiece length	1400 (including tooling 200)	mm
Maximum milling length	600	mm
Milling spiral Angle	±60°
Milling motor power	22	KW
Milling motor speed	1500	r/min
Milling cutter rod diameter	Φ60	mm
Milling cutter diameter	290 (maximum)	mm
	127 (minimum)
Maximum mounting width of milling cutter	150	mm
Milling cutter speed range	80-400	r/min
Distance between cutter spindle center and workpiece spindle center	270 (maximum)	mm
	70 (minimum)
Spindle diameter of tailstock	Φ130	mm
Maximum stroke of tailstock sleeve	60	mm
Tailstock sleeve mounting taper hole	Morse # 6
C axis motor torque	38	Nm
C shaft speed	0-25	r/min
The unit of minimum Angle of the C axis	0.005	The degree of
X axis motor torque	30	Nm
The X axis stroke	200	mm
X axis positioning accuracy	0.015	mm
X axis repeat positioning accuracy	0.012	mm
Z axis motor torque	30	Nm
The Z axis stroke	1500	mm
Z axis positioning accuracy	0.015	mm
Z axis repeat positioning accuracy	0.012	mm
Motor torque of axis A	22	Nm
A shaft drive form	Worm gear and worm
A shaft speed	0-20	r/min
Unit of minimum Angle of axis A	0.005	The degree of
Machine tool dimensions	4500×2500×2100
Machine weight	12	Tons of

Q1, How do I send my query?
You can contact us via email, phone, instant messaging (WhatsApp, wechat, Skype).
Q2,If you don't know which model is suitable for your company, please tell us your requirements for the equipment, or you can send us the product drawings, and our engineers can help you choose the most suitable model for you.
Q3,delivery time?
The project will be completed within 20 days after receiving the deposit. Please communicate with the sales staff about the specific construction period.
Q4,Payment Terms?
30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss.Welcome to inquiry sales.
Q5,Can your engineers come to help us install and debug the machine?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
Q6, If I can't know how to operate. Can your engineer help me programme well on machine?
Sure. You can provide your detailed sample drawing.engineer can programme well on machine. Or in some machines, we will put into U-disc of operation video to help you.
Q7,What control system does the equipment use?
Our standard configuration is Guangzhou CNC system, fanuc and Siemens can also be used, but the price is slightly different, please contact sales for details.
