2024 CNC Circular Saw Blade Grinding Machines for Circular Sawblade Sharpening

US$25,000.00-30,000.00 1 unit (MOQ)

Basic Info.

Model NO.
ASZ 400
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Plunge Cylindrical Grinder
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Saw Blade Dia
140~405mm
Plate Thickness
<8mm
Side Relief
0°~ 4°
Side Angle
-5°~5°
Hook Angle
-5°~+30°
Bore Diameter
15.88~80mm
Wheel Power
0.75kw
Wheel Diameter
80~120mm
Grinding Speed
2mm~10mm/S
Processing Efficiency
4~15 Tip/Min
Coolant Tank
70 L
Input Voltage
380V 50Hz(or 220V60Hz)
Power
Approx 3.7kw
Weight
2200kg
Transport Package
Water Proof + Wood Carton
Specification
2800mm*1400mm*1900mm
Trademark
TORSEL
Origin
China
HS Code
8460310000
Production Capacity
5000units/Year

Product Description

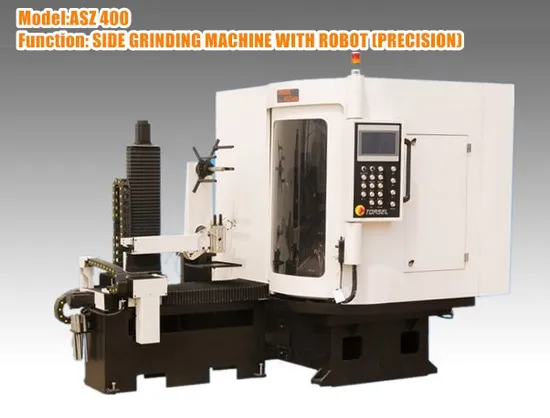

ASZ400 Side Grinding Machine with Robot (PRECISION) High-level productivity & precision grinding machine for carbide tools.
Advantages of sawblade grinding machine • More precision- grinding precision: <0.015mm,be impressed by the higher accuracy. • More efficiency- experienced productivity on a higher level • More user comfort- simplify your work • More flexibility-for precision in any requirement
• More Function- grinding SIDE of sawblade
CNC Control- High Precision is flexible to control ultra-precision grinding as requirement.
3-D Graphics Grinding Machine
Technical Premeter
Saw Diameter 140~405mm
Plate Thickness <8mm
Side Relief 0°~ 4°
Side Angle -5°~+5°
Hook Angle -5°~+30°
Bore Diameter 15.88~80mm
Pitch <80mm
Tip Length <20mm
Wheel Power 0.75KW
Wheel Diameter 80~120mm
Wheel Bore 32mm
Wheel Linear Velocity 30m/s
Grinding Speed 2mm~10mm/s
Processing Efficiency 4~15 tip/min
Grinding Accuracy <0.01mm
Coolant Tank 70 L
Input Voltage 380V 50Hz(OR 220V60Hz)
Power Approx 3.7KW
Dimension 2800mmX1400mmX1900mm
Weight 2200kg

Configuration
Ball Screw IF(Germany)
Roller Guide HIWIN(Taiwan)
Pneumatic Parts SMC(Japan)
Servo Motor Inovance
PLC Inovance ARM600
Harmonic Drive Inovance

FAQ 1. How to chooce best saw blade grinding machine? - Best grinding machine process tools with higher precision & long service life. 2. How is the performance of TORSEL saw blade grinding machine? - TORSEL saw blade grinding machine process tool with excellent precision <0.015mm,the service life is upto 7-15 years. 3. Whats your cooperation companys?
