Semi-Automatic High Efficiency Cartridge Filter Production Carbon Box Filling Machine for Gas Mask Respiratory Protection

Product Description

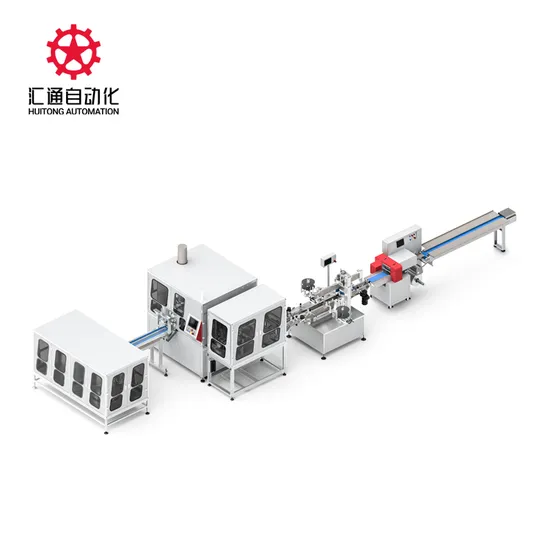

Sime-Automatic Activated Carbon Filling Machine

Automatic Activated Carbon Filling Machine with Advanced Plastic Type Transfer System for Maximum Efficiency This equipment uses a vibrating disc for feeding, and a conveyor belt to transport to a positioning point (this equipment has the function of automatically identifying whether the bottom shell is filled with filter plates and removing missing filter plates from the bottom shell). The mechanical arm positions, installs carbon, welds filter plates, flattens, closes, welds, tests, labels, sprays codes, and packages the entire process with automation. Automatic adjustment of carbon content and servo control for carbon loading structure; Each function adopts modular design, which can quickly add or remove functions according to custom needs. Scope of application: Filter boxes for filtering various gases and particles, as well as plastic products filled with particles.
Ready to embark on a lucrative venture in Activated Carbon Filling production? Discover the essential machinery you need to succeed!
Features:
1. This Activated Carbon Filling making machine adopts PLC, touch screen control, main conveyor belt adopts imported servo motor transmission, accurate transmission, stable control, adjustable speed.
2. production speed of 10-20 pcs/min , and can be produced without shutdown during feeding.
3. The equipment is easy to maintain, modular design, can be quickly spliced, to achieve rapid production.
4. The equipment size is 3224*2087 *3244mm .
5. the processing workpiece aluminum alloy hard oxygen processing, the frame adopts cast iron welding, baking paint, beautiful, solid and not rust.
6. PLC(Mitsubishi PLC) programming control, high stability, low failure rate, less noise.
7. Adopt imported servo motor, imported pneumatic components, high precision.
8. The material size is small, photoelectric detection of raw materials, avoid mistakes and reduce waste.
9. The machine adopts pulley and fixed foot, which is convenient and fast to move, strong and fixed, and does not waver.
Technical Parameters :

Model No.	T-KF10
Speed	10-15 pcs/min
Output Power	16kw
Power Supply	Ac220v 50/60hz
Air Pressure	0.6-0.8 mpa
Weight	4500 kg
Dimensions	3224×2087 ×3244mm
