Basic Info.
Milling Cutter Type
All Kinds
Milling Cutter Structure
All Kinds
Automatic Grade
Automatic
Certification
GS, CE, RoHS, ISO 9001
Guideway
X/Y/Z Axis Box Guideway
Worktable Size
1700X800mm
X/Y/Z Axis Travel
1500/800/700mm
Atc
24 Pieces Arm Type Tool Magazine
Transport Package
Wooden Case
Production Capacity
50 Sets Per Month
Product Description

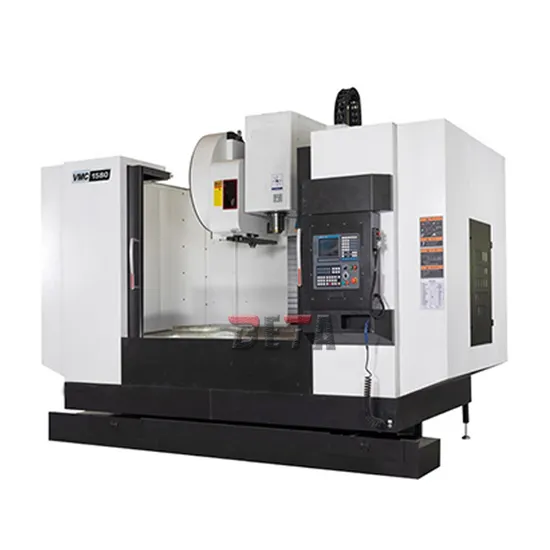

VMC1580 3 Axis Box Guideway Vertical CNC Milling Machining Center Machine
Model VMC1580
| Items | Units | VM1580 |
| Table size | mm | 1700x800 |
| T-slot | no | 5 |
| Centre distance | mm | 135 |
| T-width | mm | 22 |
| Max.load of worktable | kg | 1500 |
| Longitudinal travel | mm | 1500 |
| Cross travel | mm | 800 |
| Vertical travel | mm | 700 |
| Spindle nose to table surface | mm | 160-860 |
| Spindle taper | - | BT50 |
| Spindle speed range | rpm | 40-6000 |
| Spindle output torque(Max.) | N.M | 52.5/95.5 |
| Spindle motor power | kw | 15/18.5 |
| Cutting feed X/Y/Z-axis | mm/min | 1-10000 |
| Rapid feed X/Y/Z-axis | m/min | 18/18/15 |
| Feed motor X/Y/Z-axis | kw | 3/3/3 |
| Tool magazine capacity | piece | 24 |
| Tool magazine type | - | Arm type tool magazine |
| Max. Tool weight | kg | 15 |
| Max. Tool diameter(full/empty) | mm | 110/220 |
| Max. Tool length | mm | 400 |
| Tool changing time(tool to tool/cut to cut) | s | 2.47/6 |
| Positioning accuracy | mm | ±0.005/300 JIS |
| Repeat position accuracy | mm | ±0.003 JIS |
| Overall dimensions (LxWxH) | mm | 4200x3110x3100 |
| Machine weight | kg | 13000 |
Standard Accessories:
Taiwan spindle BT50-190-6000rpm ,
Taiwan ball screws,
Box guide ways for X,Y,Z axes
Taiwan arm type tool magazine with 24 tools,
Spindle blowing chip removal system,
Spindle air curtain protection
JAPAN NACHI or German FAG bearings,
Auto centralized lubrication system,
Rigid tapping
Two water cooling, one air cooling
Electrical hand wheel,
Working lamp, RS232 interface, alarm light
DNC online processing
Schneider electric
Optional accessories:
| the 4th axis rotary table 400mm with manual tail stock |
| chain type chip removal system with flushing |
| Screw type chip removal system with flushing |
| Renishaw tool setting probe TS27R |
| Coolant through spindle |
>>
