Compact 8-Core Optical Distribution Terminal Box for Indoor Use

Product Description

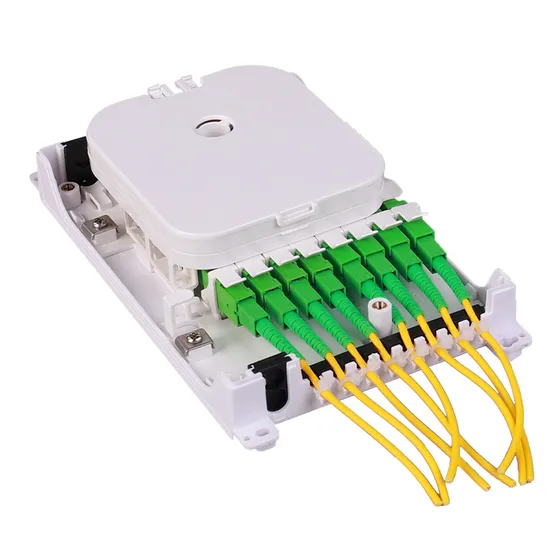

Application Designed for indoor fiber optic connections, providing reliable splicing and fiber management. Suitable for use in cabinets or wall-mounted installations, offering protection and organization for optical fibers. Product Description The GP-T428i Optical Distribution Terminal is a compact and versatile indoor fiber box designed to simplify splicing and optical fiber management. Constructed with LSZH plastic, it provides dual-layer protection with separate covers for customer and splice areas. The box includes slots for 1:8 micro PLC splitters, 8 SC adapters, and two 12-fiber splice trays that hold at a 120° angle for convenience during wall-mounted installation. Clear routing and a bend radius of ≥20mm ensure reliable fiber organization and protection.
Features & Benifits Dual-Layer Protection: Two covers safeguard both customer and splice areas for added security. Compact Design: Space-efficient dimensions of 215×126×50 mm, ideal for indoor environments. Enhanced Fiber Management: Clear functional area division with routing paths for organized cables. Splice Tray Flexibility: Two splice trays supporting up to 24 fibers, each with a 120° holding angle for easy access. Splitter Integration: Slots for 1:8 micro PLC splitters provide flexibility for fiber routing. Adapter Support: Accommodates 8 SC adapters for seamless fiber connections. User-Friendly Installation: Wall-mounted design with adaptable components for quick setup. Detailed Photos
Specification

Part No.	GP-T428i
Dimension	215*126*50mm
Protection Class	IP43
Main Cable Ports	2 in 2 out (on line) x φ10mm
Drop Cable Ports	8×φ5mm, or figure 8 cable
Fusion Splice	24 FO
Number of Splices Tray	1 PC
Number of Adapters	8 SC
Suitable splitter	1:8 PLC Micro Splitter
Mount way	Wall-mounting

Packaging & Shipping

Part No.	Description	Carton Size	Carton Gross Weight	Carton Capacity
GP-T428i	standard configuration, no adapters nor pigtails	58.5*25.0*23.0CM	6.25 KG	12 PCS/CTN
GP-T428i	standard configuration, no adapters nor pigtails	49.0*30.0*37.5CM	10.42 KG	20 PCS/CTN

---
