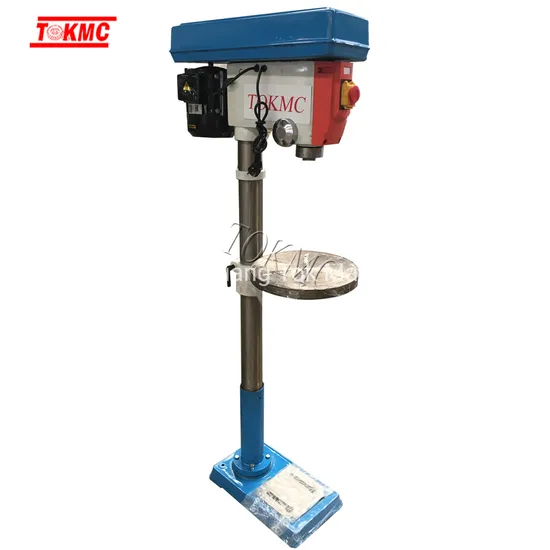

Vertical Round Column Pillar Drilling Machine 19mm

US$300.00-500.00 1 Piece (MOQ)

Basic Info.

Model NO.
ZT-19GF
Controlling Mode
Artificial
Number of Shaft
1
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE
Condition
New
Drilling Machine
Suitable Height
Drilling Machine Motor
550W
Overall Height
1625mm
Spindle Speed
250- 3200 Rpm
Spindle Travel
100mm
Table Size
350mm
Spindle Taper
Mt2
Column Dia
80mm
Spindle Driven
Belt
Transport Package
800X560X340mm
Specification
100kgs
Trademark
tokmc
Origin
China
HS Code
84592900
Production Capacity
100 Sets Per Months

Product Description

vertical round column pillar drilling machine 19mm
Item ZT-16E ZT16J ZT-19GF ZT-32GF
Max.drilling dia.mm 16 16 19 32
Chuck size mm 16 16 16 16
Table travel mm 365 365 830 500
Table size mm φ290 φ312 φ350 470×420
Spindle travel mm 80 85 100 125
Distance spindle axis to column 182 182 199 300
Spindle taper MT2 MT2 MT2 MT4
Column diameter mm 72 72 80 92
Spindle speeds series r.p.m 300-3100 300-3100 250-3200 160-2060
Spindle steps 12 12 12 9
Motor W 370 370 550 750
Overall height mm 965 992 1625 1730
N.W./G.W. KG 53/57 65/69 100/120 173/210
Packing case dimensions mm 785×460×280 785×460×280 800×560×340
1450×150×150		 1430×430×570
