Plastic Auto Parts Molding Machine Supplier

Product Description

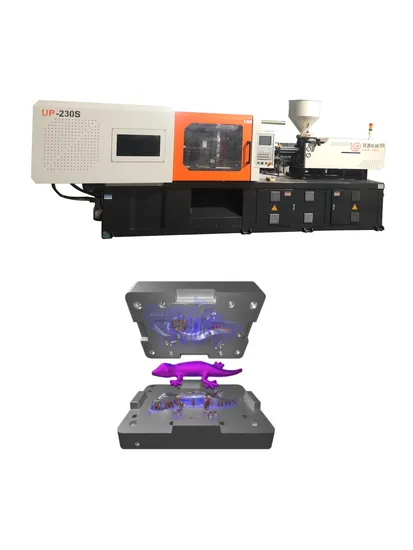

China Servo Injection Molding Machine
Introducing the latest servo injection molding machine from Ningbo Union Power Machinery Co., Ltd. This cutting-edge machine offers a range of features to enhance your injection molding process:
Modulus of Capacitance: Ensure precise positioning, size, and maximum allowable modulus of capacitance with the injection molding machine guide pillar (Green column).
Nozzle Parameters: Customize spherical diameter, aperture, outer diameter, extension length, and positioning aperture for optimal performance.
Code Mold Parameters: Define mold hole and slot size effortlessly with this standard injection molding machine.
Ejection Mechanism: Easily adjust ejection point position, ejector rod diameter, force, and stroke as needed for efficient production.
Mold Opening Stroke: Experience smooth operation with adjustable opening stroke and maximum opening distance.
Upgrade your injection molding process with the China Servo Injection Molding Machine from Ningbo Union Power Machinery Co., Ltd. for unparalleled precision and efficiency.

Technical Parameters	Model UP-230T
Injection Unit	A	B	C
Screw diameter (mm)	50	55	60
Shot Volume (cm3)	461	558	664
Injection weight (g)	415	502	598
injection pressure (Mpa)	169	142	121
Screw speed (rmp)	155
Clamping Unit
Clamping force (KN)	2300
Open stroke (mm)	475
Max Mold height (mm)	550
Min Mold height (mm)	220
Space between tie bars(mm)	530*530
Ejector force (KN)	70
Ejector stroke (mm)	135
Others
Pump pressure (Mpa)	16
Motor/driving power (KW)	22(21.2)
Heating power (KW)	14.2
Machine dimension (M)	5.8*1.55*2.15
Machine weight (T)	6.3
Oiltank cubage (L)	350

---
