US$260.00-460.00
|
5 Pieces
(MOQ)
|
Basic Info.
Cutting Material
Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
Cutting Mode
Plasma Cutting
Max Cutting Thickness
55mm
Optional
Air Regulator, Air Hose
Transport Package
Carton Box
Specification
Machine size: 54*29*52CM
Production Capacity
15K PCS /Month
Product Description

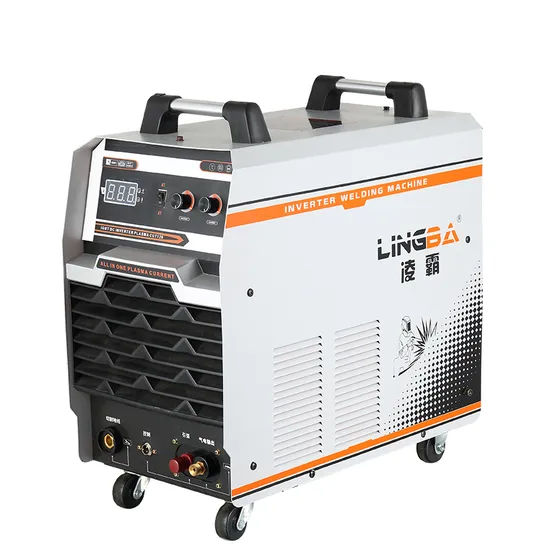

PLASMA CUTTING MACHINE
Feature:
Advanced IGBT Technology design, high inverter frequency, high load sustained rate, energy saving, small size, light weight, easy to carry, especially suitable for outdoor mobile operations, the use of cheap Compressed air cutting gas source, more economical and efficient than flame cutting.
Compared with traditional cutting machine, ARC ignition success rate is high, arc pressure is high, energy concentration, cutting ability, cutting speed, cutting slit narrow, smooth incision, small deformation and so on.
Different thickness of the metal plate can be arbitrary curve cutting, cutting current continuously adjustable. Accurate and intuitive.
Built-in over-heat, over-current, protection , safe operation. Suitable for cutting stainless teel ,cooper,iron and aluminum metal etc.
HF touched ARC-STARTTING (CUT-30 40 60)
HF untouched ARC-STRATTING (CUT-80 100 120 160)
Parameters
| | CUT-80 | CUT-100 | CUT-120 | CUT-160 |
| Input voltage (V) | 380 | 380 | 380 | 380 |
| Rated input power capacity (KVA) | 12 | 15 | 19 | 29 |
| No-load voltage (V) | 270 | 270 | 270 | 270 |
| Adjustable output current range(A) | 15-80 | 15-100 | 15-120 | 15-160 |
| Rated output power voltage (V) | 112 | 120 | 104 | 104 |
| Load duration rate (%) | 60 | 60 | 60 | 60 |
| No-load loss (W) | 40 | 50 | 60 | 60 |
| Efficiency (%) | 85 | 85 | 85 | 85 |
| COS power factor (COSĪ¦) | 0.93 | 0.93 | 0.93 | 0.93 |
| Class of insulation | F | F | F | F |
| Weight (KG) | 12 | 12 | 16 | 16 |
| Dimension (MM) | 520*260*480 | 550*270*560 | 550*270*560 | 550*270*560 |
| Shell protection class | IP21 | IP21 | IP21 | IP21 |
| Thrust adjusting range (A) | / | / | / | |
>>
