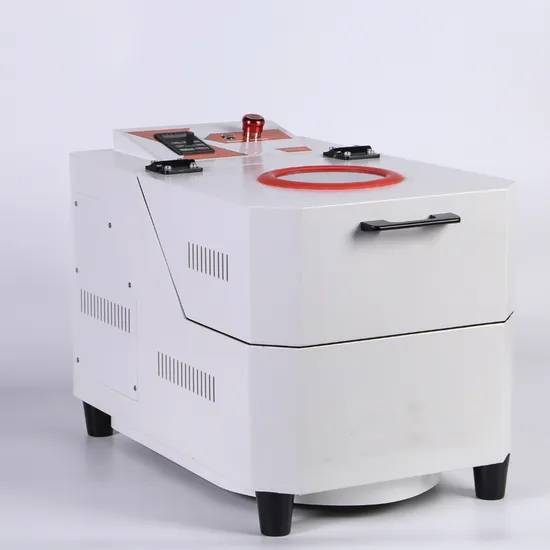

High Efficiency 0.4L Planetary Ball Mill for Nano Powder Grinding

Product Description

High Efficiency 0.4L Planetary Ball Mill for Nano Powder Grinding and for food
Introduction: 1. SQM-0.4L planetary ball mill is an essential device for mixing, fine grinding, sample preparation, nano-material dispersion, new product development and small batch production of high-tech materials. This product is small in size, full in function, high in efficiency and low in noise. It is an ideal equipment for scientific research institutions, universities and enterprise laboratories to obtain micro-particle research samples (four samples can be obtained at the same time in each experiment). With the vacuum ball milling tank, the samples can be ground under vacuum. 2. The SQM-0.44L planetary ball mill is equipped with four ball milling tanks on the same turntable. When the turntable rotates, the ball milling tanks revolve around the turntable axis and rotate around their own axis, making planetary motion. Grinding balls in the tank collide with each other in high-speed motion, grinding and mixing samples. This product can grind and mix products with different particle sizes and materials by dry and wet methods. The minimum particle size of ground products can reach 0.1 micron (i.e. 1.0 × 10 mm-4). 3. Working mode: two or four ball milling tanks work at the same time Maximum sample loading: two-thirds of the volume of ball milling tanks. Feed tension: soil material ≤10 mm. Other materials ≤3 mm. Discharge particle size: the minimum can reach 0.1 um (i.e. 1.0 x 10 mm-4).
Products Parameters:

Name	Laboratory Planetary Ball Mill
Model	SQM-0.4L
Capacity	100ml * 4=0.4L
Style	Planetary
Grinding ways	Dry grinding /wet grinding/High energy alloyed grinding/vacuum grinding/low temperature grinding for optional
Loading and unloading method	Intermittent type
Transmission mode	Gear drive
Speed control mode	Frequency conversion speed regulation
Control system	Frequency conversion control system
Speed rate(r/min)	2:1
The revolution speed(r/min)	5-400
Rotation speed(r/min)	10-800
Rated voltage(V)	220
Rated power(W)	750
Frequency(Hz)	50
Long run time(h)	100
Run time(h)	0-9999
Multi section speed setting	7 section
Feed particle size(mm)	<15mm,Hard material <3mm
Grain size(μm)	0.1μm,or 100nm
Ball material ratio	(2~10):1
Net Weight	90KG
Dimension	66*44*52cm

Related Other Models

Model	Specification	Jars can take		Remarks
		Capacity	Qty(Piece)
SQM-1L	1L	50-250ml	2/4	with 50-100ml vacuum jar
SQM-2L	2L	50-500ml	2/4	with 50-250ml vacuum jar
SQM-4L	4L	50-1L	2/4	with 100-500ml vacuum jar
SQM-8L	8L	500-2L	2/4	with 250ml-1L vacuum jar
SQM-12L	12L	1L-3L	2/4	with 500ml-2L vacuum jar
SQM-16L	16L	1L-4L	2/4	with 500ml-3L vacuum jar
SQM-20L	20L	1L-5L	2/4	with 1L-4L vacuum jar
SQM-40L	40L	4L-10L	2/4	with 3L-5L vacuum jar
SQM-60L	60L	5L-15L	2/4	with 4L-10L vacuum jar
SQM-100L	100L	10L-25L	2/4	with 5L-20L vacuum jar

Planetary ball mill specification:

Model	Power	Motor power (KW)	Frequency power(KW)	Continuous running time(h)	Positive and reverse turn operation cycle selection(min)	Speed r/min		Noise≤db(A)
						The revolution (adjustable)	Rotation (adjustable)
SQM-0.4L	220V 50HZ	0.55	0.55	1-9999	1-9999	30-450	60-900	<60db
SQM-1L	220V 50HZ	0.75	0.55	1-9999	1-9999	30-400	60-800	<60db
SQM-2L	220V 50HZ	1.1	0.75	1-9999	1-9999	30-400	60-800	<60db
SQM-4L	220V 50HZ	1.1	0.75	1-9999	1-9999	30-400	60-800	<60db
SQM-8L	220V 50HZ	1.5	1.5	1-9999	1-9999	30-280	60-560	<60db
SQM-12L	380V 50HZ	1.5	2.2	1-9999	1-9999	30-260	60-520	<60db
SQM-16L	380V 50HZ	2.2	2.2	1-9999	1-9999	30-260	60-520	<60db
SQM-20L	380V 50HZ	3.0	4	1-9999	1-9999	30-230	60-460	<60db
SQM-40L	380V 50HZ	3.0	4	1-9999	1-9999	30-180	60-360	<70db
SQM-60L	380V 50HZ	4.0	5.5	1-9999	1-9999	30-170	60-340	<70db
SQM-100L	380V 50HZ	7.0	7.5	1-9999	1-9999	30-160	60-320	<70db

Products Image details:
Product Application:
Planetary ball mill jars and balls for selection:
Others Relative ball mill machines for your referrence:
Any further inquire or question,welcome to contact us Freely.
