Product Details
Product Description
Product Description

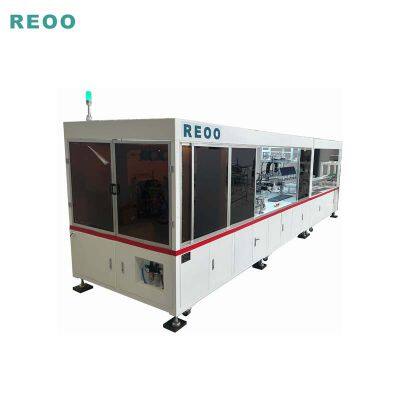

Solar Cell Tabber And Stringer Machine
De
Related parameters
Soldering capacity
| Can soldering 1800 pcs of solar cell per hour
|
Cell dimension
| 30~166*166mm
|
Cell thickness
| From 160 micron and up
|
Ribbon sizes
| Width is 1.0 ~1.6mm,Thickness is 0.12~0.23mm
|
Breakage
| ≤0.2%
|
Cell basket capacity
| Four baskets system to load up to 100pcs each,total 400 pcs
|
Operation control
| PLC touch screen
|
Soldering technology
| IR light
|
Soldering light life
| ≥1000Hr
|
Soldering temperature
| Normal~400℃(adjustable)
|
Input power
| 50~60Hz/AC380V/16A,Can customized .
|
Input power
| 10KW
|
Average power
| 4~5KW
|
Compressed air
| ≥0.5Mpa clean & dry air
|
Ribbon drawing systemThe Soldering ribbon tension and feeding mechanismare designed cleverly to ensure the smooth Solderingribbon and accurate positioning.
Intelligent control system, very easy to control andoperation. The touch screen is available in both Englishand Chinese, and the language can be customizedaccording to the customer (but there is an additionalprice).
The use of Japan Panasonic PLC control the wholemachine, careful design, reasonable arrangement, the machine is fully automated and intelligent
New design: When solar cell stringer is discharged, the user can settwo discharging methods.
Ribbon drawing systemThe Soldering ribbon tension and feeding mechanismare designed cleverly to ensure the smooth Solderingribbon and accurate positioning.
Intelligent control system, very easy to control andoperation. The touch screen is available in both Englishand Chinese, and the language can be customizedaccording to the customer (but there is an additionalprice).
The use of Japan Panasonic PLC control the wholemachine, careful design, reasonable arrangement, the machine is fully automated and intelligent
New design: When solar cell stringer is discharged, the user can settwo discharging methods.
Our clents
Packing and delivery
Packing:
1) All the equipment, tools, accessories and goods are suitably packed.
2) All packages are liable to be opened for customs' examination.
3) All the packages are designed to facilitate.
4) Each package has the printed shipment information.
Delivery time:
Around 15-25 days after received the advance payment.
Certificates
Our service
Installation:
We arrange our engineers to buyer’s factory to install machine.
All expenditure on travel, food,accommodation and transportation of our engineers/ technicians for installation will be borne by buyer. REOO company borne the salary of engineer/technicians.
Training:
We supply both overseas and local training to the engineers and technicians on operation and maintenance.
Buyer borne air tickets, lodging, food and training material .
Manuals/Documents:
Operational and maintenance manuals of all equipment is in English, along with a soft copy in a CD
(compatible version: MS Word/ PDF).
Raw material:
We supply all the material for production solar panel from China for trial production and formal production,
buyer pay for the cost.
Contact us
MRS. Holly
NANTONG REOO TECHNOLOGY CO,. LTD
website:
Add: Chennan industrial park, Juegang, Rudong, Jiangsu, China P.C.: 226400
Tel: +86-513-8410 5399 Fax: +86-513-8410 5505 Mobile: +86 13773695989
Skype: REOO Holly WhatsApp:+86 13773695989 Wechat: 008618951327598
>>
