Product Description
Product Description

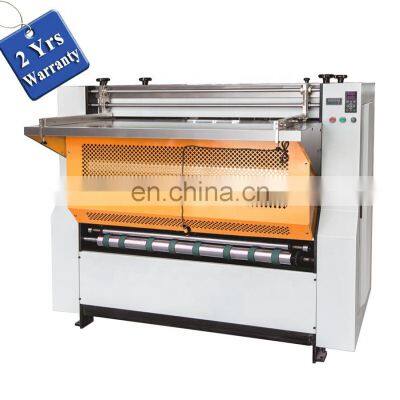

BG1000 Manual phone wine gift Box gray board cardboard v slot grooving MachineVideosVideo demonstration only for referenceVideo 1: /watch?v=CBzhUGCC02cVideo 2: /watch?v=j0OYW-DIQng Product Description DescriptionThe machine is speciallydesigned to cut V type groove on different paperboards such asindustry-cardboard, gray cardboardand MDF boardetcc. It adopts new way of transportation principle. Wrap the cardboard on the entire surface of the roller, It can guarantee the groove more accurately, no deviation and straightly. The machine has the features of high accuracy, fast speed and durable cutting blade. Parameters: Model BG1000BG1200Board width130-930mm130-1130mmBoard length130-900mm130-900mm`Board thickness300GSM-4mm300GSM-4mmMini grooving gap2mm2mmGrooving degree80-140 degree adjustable80-140 degree adjustableGrooving number9 pcs one time9 pcs one timeSpeed10-35pcs/min10-35pcs/minPower2.2kw/380V2.2kw/380VWeight1100kg1200kgDimension 1200x1500x1500mm1200x1700x1500mm Detailed Images Service Team Pre-sale Service After-sale Service A: Inquiry and consulting support A: English manuel and video instruction B: Sample testing support. B: Your technians can get trained in my factoryC: Invoice and Contract confirmation. C: Engineers available for overseas if necessary FAQ1.Q: What information should i let you know if i want to get a quotation?A: What is your Max and Min product size in mm?B: What is your paper thickness in GSM?C: Some photos of your finished products2.Q: Are you a manufacturer?A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter. 3.Q: What about the payment term?A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..4.Q: What is the warranty?A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)5.Q: What is your aftersale service?A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..6.Q:What is the delivery time?A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.Packaging & ShippingWooden Case Loading and Transport Contact UsYOU ARE WELCOME TO CONTACT US ANYTIME AVAILABLE. Mobile/Whatsapp/Wechat: +86-18258286679 Email: utecs@ , utecsinter@ , danielsuer@ Skype: danielsuerWeb:
>>
