Product Description
Product Description

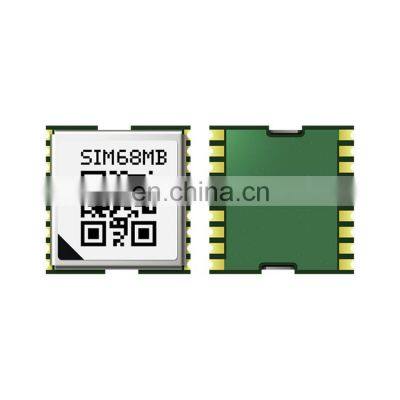

DescriptionSIMCom presents a high performance and reliable GNSS module-SIM68MB. This is a standalone GPS L1 frequency and BD2 GNSS module in a SMT type with MTK’s high sensitivity navigation engine, which allows customer to achieve industry’s high level sensitivity, accuracy, and Time-to-First-Fix (TTFF) with lower power consumption.Mechanical data•Dimensions: 10.1*9.7*2.5mm•Weight: 0.5g Features•Support GPS/BD2•Support EASYTM self-generated orbit prediction•Support EPOTM orbit prediction•Support SBAS ranging (WAAS, EGNOS, GAGAN,MSAS)•Support DGPS (RTCM)•Support Jamming Removing•Low-noise amplifier has been integrated Interfaces•Serial interfaces UART•Digital I/O EINT0 inputPulse-per-second (PPS)•Protocols NMEAPMTKPSIM Support product•SIM68 EVB KIT with USB V2.0 full speed interfacePerformance data•Receiver type33tracking/99 acquisition channel GNSS receiver•Max. update rate 10Hz•Sensitivity1Tracking:-165 dBmReacquisition:-160 dBmCold starts:-148 dBm•Time-To-First-Fix2Cold starts:28 sWarm start:26 sHot starts:<1sEPO Assist:13s（CTTFF)• AccuracyAutomatic Position3:<2.5m CEPSpeed4:0.1m/s•Operation temperature5: -40℃~+85 ℃Electrical data•Power supply: 2.8V~4.3V •Backup power: 2.3V~4.6V•Power consumption2,6Acquisition: 25mATracking: 18mAAlwaysLocateTM: 340uABackup 14uA•Antenna type Active and passive•Antenna power External or internal VCC_RF Approvals•ROHS•REACH ------------------1.Demonstrated in lab2.All SV @ –130 dBm, GPS&BD2 mode3.50% 24 hr static, -130dBm,GPS&BD2mode4.50%@ 30m/s5.When at -40℃~ -30℃,the sensitivity will be somewhat worse6. @2.8V with a passive antennaWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
>>
