US$10,535.00
1-4 set/sets
Basic Info.
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Automatic Grade
Semiautomatic
Max.Swing Dia.Over Bed
500mm
Max.Swing Dia.Over Slide
290mm
Maximum Tuning Diameter (Disc)
500mm
Max. Work Piece Length
850mm
Maximum Turning Length
850/1350/1850mm
Spindle Speed
45-180/180-750/600-1600r/Min
Spindle Type
Stepless Speed Regulation
Spindle Motor Power
7.5kw
X Axis Rapid Traverse
6mm
Z Axis Rapid Traverse
8mm
Machine Dimension/Lxwxh)
2750X1700X1820
Tool Holder Standard Configuration
Electric Four-Station Tool Holder
Transport Package
Wood Package/Wood Frame
Production Capacity
200 Pieces/Month
Packaging & Delivery
Package Size
275.00cm * 170.00cm * 182.00cm
Package Gross Weight
2700.000kg
Product Description

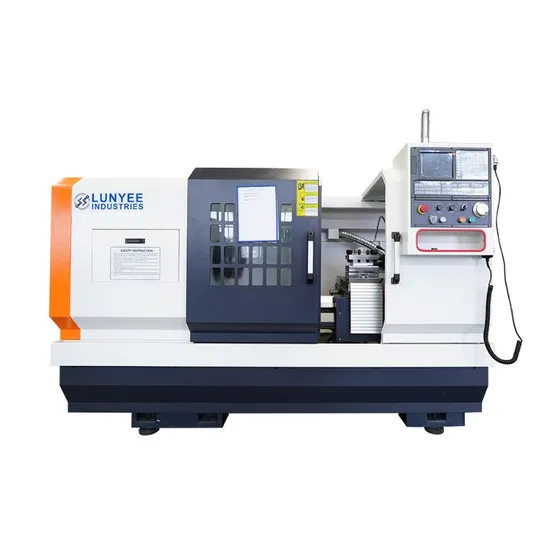

High Speed Taiwan Linear Guide 0.01mm Precision Flat Bed CNC Lathe Machine Product Description
Product Parameters
| Specifications | CK6150B |
| Spindle nose | A2-8/A2-11 |
| Spindle type | stepless speed regulation |
| Chuck type | manual chuck |
| Chuck size | 250/320/380 |
| X axis rapid traverse | 6m/min |
| Z axis rapid traverse | 8m/min |
| X axis servo motor torque | 5/7.5N.m |
| Z axis servo motor torque | 7.5/10/15N.m |
| X axis travel | 280mm |
| Z axis travel | 1000/1500/2000mm |
| Capacity of tool post | 4 |
| Tool shank size | 25x25mm*mm |
| Tail stock quill travel | 150mm |
| Total rated power | 11/12/13KW |
| Total rated current | 23/26/29 |
| Net weight | 2700kg |
| Machine dimension/LxWxH) | 2750x1700x1820 mm |
Company Profile
FAQ
Q: Are you trading company or manufacturer?
A: We are the manufacturer for 15 years in China.
Q:How can I choose the most suitable machines?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production→cargo ready → balance/delivery → further cooperation.
Q: Is your price competitive?
A: Only good quality product we supply. Surely we will give you best factory price based on superior product and service.
Q: Did you test all the goods before they were shipped?
A: Yes, we test every product before delivery, the quality can be fully guaranteed.
Q:Do you accept product customization?
A:Yes, we will try our best to meet your requirements.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted, Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
If you have another question, please feel free to contact us.
>>
