US$220,000.00-240,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Making Method of Parison
Extrusion-Blow Molding
Computerized
Computerized
Certification
CE, ISO9001:2008, QS, GMP
After-sales Service
1 Year
Screw Diameter
90/90/90/90mm
Extruder Motor
45/45/45/45kw
Screw Heating Power
4.4kw*16
Plasticizing Capacity
400kg/H
Accumulator Capacity
35kg
Die Head Heating Power
90kw
Maximum Air Pressure
0.8MPa
Air Consumption
1.5m3/Min
Transport Package
Be Disassembled Into Many Parts for Container Tran
Production Capacity
16-25PCS/H
Packaging & Delivery
Package Size
50.00cm * 50.00cm * 50.00cm
Package Gross Weight
50.000kg
Product Description

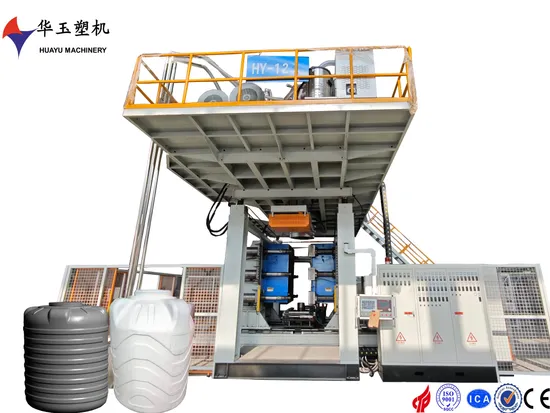

1000L 4 layers blow moulding machine, mainly used for produce water storage tanks, capacity range 200~1000L. Otherwise can be designed for producing non-standard products according to customer's request.
Servo motor ,
IKV screw barrel ,
Diehead seals use hard seal
Moog 200 points
Touch screen 12''
New type of robot arm
Made in China & Made by Weifang Huayu Plastic Machinery Co.,Ltd.
The seller transports the goods to Qingdao Port, China after inspection of machine.
All the inspection work should be performed as the technical configurations and parameters which are stipulated in the contract.
The machine will be disassembled into many parts for container transportation. The seller is responsible for packing and fixing all these parts in container well according to their own experience.
The seller's machine should be passed the ISO9001, CE certification.
>>
