Cheap Factory Price Construction Equipment Concrete Mixer in High Efficiency

Product Description

Cheap Factory Price Construction Equipment Concrete Mixer in high efficiency

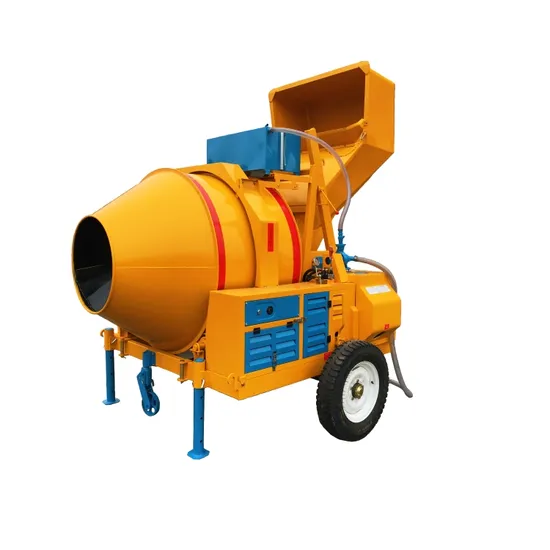

Reverse Drum Concrete Mixer With Hydraulic Tipping Hopper
Model RDCM350-11DH / RDCM500-16DH
Characters:
1. Heavy duty, reversing drum, hydraulic feed concrete mixer,
2. High mixing efficiency, it is enable the mixer to produce up to 40 batches per hour.
3. 14 cubic meters output, standard machine includes water tank with water meter,
4. Hand/electric start, air cooled diesel engine / water cooling diesel engine are optional,
5. Towable chassis with two pneumatic-tired wheels,
6. Jacking system allows wheel removal for storage during long-term use
HS code: 8474310000
RDCM350-11DH concrete mixer Working principle:

The drum rotates in one direction for mixing and in the opposite direction for discharging the concrete. There are two types of blades attached to the inner walls of the drum. One set drags the concrete upwards and toward the center of the mixer when the drum rotates in one direction; The second set of blades pushes the concrete toward the opening when the drum rotates in the other direction. The blades have a spiral arrangement to obtain the desired effect for discharging and mixing.

MODEL	RDCM350-11DHA (two wheels)	RDCM350-11DHB (four wheels)
Power (KW)	11
Power source	Diesel engine, Single cylinder, water-cooled with radiator With battery starter
Water Tank	140L (with Water Pump)(water level indicator)
Unmixed Capacity (Liter)	560 liter /2 bags cement
Mixed Capacity (Liter)	350 liter
Mixing time (Sec.)	46 sec.
Capacity Per Hour (m3/h)	14
Dimension (mm)	3250*2240*3200	3250*2240*3200
Weight (Kg)	1790	1840

---
