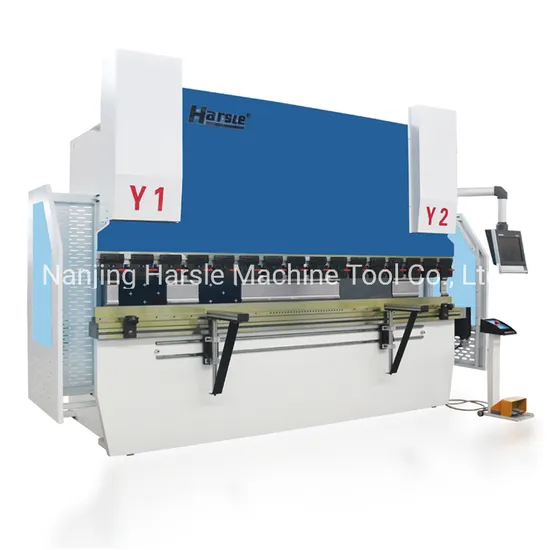

We67K Hydraulic Press Brake with High Precision

Product Description

Features:
1. Totally European design, streamlined looking,Monoblock,Welded steel frame rigid to deflection moment and high tensile with ST44 A1 material.
2. HS PRESS BRAKE is Equipped with the Estun user-friendly user interface,the E21 provides all main press brake functionality.
3. Automatic tonnage and stroke adjustment for bending angles.Perfect bending results with easy angle input and operation of machine.
4. All tubes are connected by tube insertings to avoid oil lost and burst by welding tubes.
5. Ball screw and line guide was designed to improve precision.
6. E-Z fast wedge clamping was designed to change tools quickly.
7.Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.
Standard Equipment:
1.System Intermediate Upper clamps with Anti Wedges
2.Plate Support Arms
3. Powered Depth Axis
4. Backstop
5. Light guards
6. Top and Bottom Tooling
7. Estun E21 NC control
8. Germany Bosch-Rexroth Hydraulic
9. Telemecanique/SchneiderElectrics
10. Hydraulic and Electrical overload protection
11. Squaring Arm and Front Support Arms
12. Delta inverter with ball screw and polished rod with 0,05 mm accuracy.
13. Side guard is standard meeting CE regulations.

Estun E21 NC Press Brake Control system:
1. Monochrome LCD Box Panel.
2. Integral factor programmable freely
3. Automatic positioning control
4.Spindle allowance offset
5.Internal time relay
6.Stock counter
7.Backgauge position display, resolution in 0.01mm
Technical Parameters

Type	Nominal Force(KN)	Worktable size(mm)	Poles Distance (mm)	Throat Depth (mm)	Slider Travel (mm)	Max Open(mm)	Power(KW)	Dimension(mm)
40T/2200	400	2200	1875	230	100	320	5.5	2200*1200*1910
40T/2500	400	2500	1875	230	100	320	5.5	2500*1200*1910
50T/2500	500	2500	1875	230	100	320	5.5	2500*1210*2000
63T/2500	630	2500	2020	250	100	320	5.5	2500*1300*2210
63T/3200	630	3200	2575	250	100	320	5.5	3200*1300*2210
80T/2500	800	2500	2020	300	100	320	7.5	2500*1400*2300
80T/3200	800	3200	2590	320	100	350	7.5	3200*1500*2300
80T/4000	800	4000	3050	320	100	350	7.5	4000*1500*2400
100T/2500	100	2500	2020	320	120	320	7.5	2500*1600*2400
100T/3200	100	3200	2600	320	120	370	7.5	3200*1600*2600
100T/4000	100	4000	3050	320	120	370	7.5	4000*1600*2700
125T/3200	1250	3200	2600	320	120	370	7.5	3200*1600*2600
125T/4000	1250	4000	3050	320	120	370	7.5	4000*1600*2700
160T/3200	1600	3200	2600	320	200	460	11	3200*1700*2700
160T/4000	1600	4000	3000	320	200	460	11	4000*1700*2800
160T/5000	1600	5000	4000	320	200	460	11	5000*1900*3100
160T/6000	1600	6000	4940	320	200	460	11	6000*1900*3200
200T/3200	2000	3200	2600	320	200	460	11	3200*1950*2800
200T/4000	2000	4000	3000	320	200	460	11	4000*1950*2800
200T/5000	2000	5000	4000	320	200	460	11	5000*1950*3000
200T/6000	2000	6000	5000	320	200	460	11	6000*1950*3300
250T/3200	2500	3200	2500	400	250	590	18.5	3200*2000*3200
250T/4000	2500	4000	3000	400	250	590	18.5	4000*2000*3400
250T/5000	2500	5000	4000	400	250	590	18.5	5000*2000*3400
250T/6000	2500	6000	5000	400	250	590	18.5	6000*2000*3400
300T/3200	3000	3200	2530	400	250	590	22	3200*2000*3450
300T/4000	3000	4000	3000	400	250	590	22	4000*2000*3450
300T/5000	3000	5000	4000	400	250	590	22	5000*2000*3450
300T/6000	3000	6000	5000	400	250	590	22	6000*2000*3450
400T/4000	4000	4000	3000	400	250	590	30	4000*2180*3400
400T/5000	4000	5000	4000	400	250	590	30	5000*2180*3500
400T/6000	4000	6000	5000	400	250	590	30	6000*2180*3800
500T/5000	5000	5000	4000	400	250	590	45	5000*3500*3700
500T/6000	5000	6000	5000	400	320	590	45	6000*3500*3700
600T/4000	6000	4000	3000	400	320	590	55	4000*4500*3700
600T/6000	6000	6000	5000	400	320	590	55	6000*4500*3700
800T/6000	8000	6000	5000	400	320	590	55	6000*4500*6000

Package and Shipping
According to the standard package, but for the safe, we suggest you use the wooden case
If you have interest, Please contact me
Miranda Cao (Foreign Sales )
Nanjing Harsle Machine Tool Co., Ltd.
Add: Mingjue Industrial Park, Lishui, Jiangsu, China
Tel: +86-25-56200956
Mob: +86-18952086019 | Fax: +86-25-57260217
Web: harsle.en.made-in-china.com

---
