Feed Processing Machine Feed Pellet Mill Animal Feed Pellet Making Line

Product Description

Feed Processing Machine Feed Pellet Mill Animal Feed Pellet Making Line
Introduction:
1. Animal feed pellet production line be composted by feed crusher, mixer, pellet mill, cooler, screener and packing machine.It is a good choice for the farm owner and those who plans to step into the poultry feed making industry.2. It is mainly used to produce different animal feed pellets for chicken, pig, cattle, sheep, fish, shrimp etc different animals.3. Raw materials: wheat, wheat bran, corn, soybean, Barley, oats, alfalfa, grass, fish meal, bone powder, meat etc materials.
Step of Poultry Livestock Feed Production Line

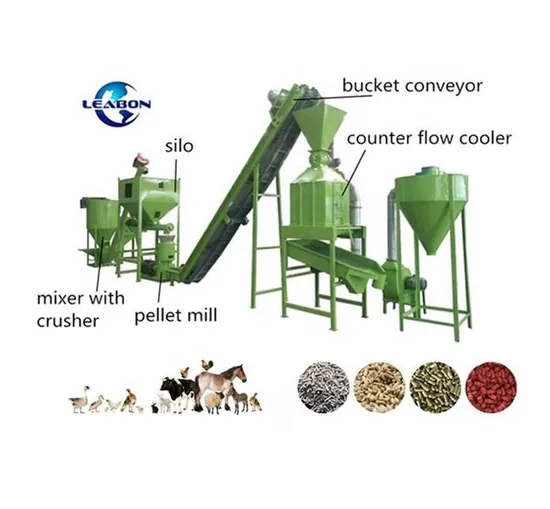

Raw materials → Crushing → Mixing → Granulation → Cooling → Screening and grading → Packaging.Related equipment of Livestock Feed Production Line Feeding pit → Hammer mill → Mixer → Pellet mill → Cooler → Screener → Packing Machine.Working principle-------feed Pellet machine:
The main parts are made of alloy steel to be quite strong and malleable.
The main shaft and flat die in the effect of friction drive the compression roller rotating itself. The temperature will rise between the compression roller and mould disk, then the high temperature will ripen the starch, make the protein denaturation and solidification. Finally the raw materials will discharged from the mould holes. Then the pellets can be get out of the machine through the throwing disk. We can control the length of the pellets according to adjust the angle of cutting knives.
Specification:

tem	5T/H Animal feed pellet making plant
Raw Materials	Corn/Maize, soybean, fish meal, wheat, wheat bran, bone powder, meat etc. Size:3-5mm Moisture content: 14-16%
Pellet Diameter	2.5/3/4/6/8/10/12mm
Pellet Application	The feed pellets can feed for different animals like chicken, fish, pig, sheep, cattle, pet, dog, fox, bird etc animals.
Technical	Capacity:0.5-50t/h (also can customized according to your demands)
Catalogue of Feed Pellet Line	1. Feed Crusher
	2. Feed Mixer
	3.Feed Pellet Machine
	4.Feed Pellet Cooler
	5.Pellet Crumbler
	6. Pellet Cooler and Screener
	7.Packing Machine
Advantage	High efficiency, Suitable for home and small farm use; Simple structure, Easy operation Easy to maintain; Long service life, High rate of return.
Packing Details	International standard export wooden case or iron box package or container.
Warranty	2Years

Pictures showcase--------feed pellet machine:
Technical Parameter of Pellet Machine Animal Feed :

Model	CM-25A	CM-25B	CM-30B
Output(kg/h)	1000-1200	1000-1500	1500-2000
Power(kw)	22	22	30
Revolving Speed of ring die(r/min)	306	306	330
Inside diameter of ring die(r/min)	250	250	304
Pellet diameter(mm)	ø1.5,ø2,ø2.5,ø3,ø3.5,ø4,ø5,ø6,ø8
Dimension(m)	1.1*1.15*1.25	1.1*1.15*1.25	1.35*1.3*1.6625
Weight(kgs)	625	710	960

Raw materials&Final product:
Application--------pet feed extruder machine
They are widely used in household ,small farm , feed factories, organic fertilizer factories,chemical factory ,breed aquatics factories, and China traditional medicine factories, etc.
Now this feed pellet machine is mainly used to make feed pellets for dog,cat ,cow,chicken,sheep,rabbit, pigeon, layer chicken, broiler, duck, goose, fish, pig ,pets and so on.
Brief introduction of 1 ton/h whole complete large capacity feed pellet production line
Some Finished Feed Pellet Production Line
Packing & Shippment
Packing Details: International standard packing of feed pellet production line in wood case.Shipping Time: Shipped in 10-15 days after payment.Our company:
Zhengzhou Leabon Machinery Equipment Co., Ltd is professional manufacture for wood pallet nailing machinewood pellet making line,Wood shaving machine,briquette making line, carbonizational stove,filtration equipment,etc. design, manufacture,sales and services.It enjoys professional production technology, superior manufacturing equipment and good testing means. In order to meet different needs of customers. We sincerely hope to cooperate with more and more customers from the domestic and overseas for mutual development.
Our Service:
1.Customized products and packaging;
2.24-hours online inquiring support.
3.One year warranty but without the spare parts.
4.Video and technical guidance.
5.Show our factory and support video inspection.
6.Free raw material test service.
7.Engineers available to service machinery overseas.
