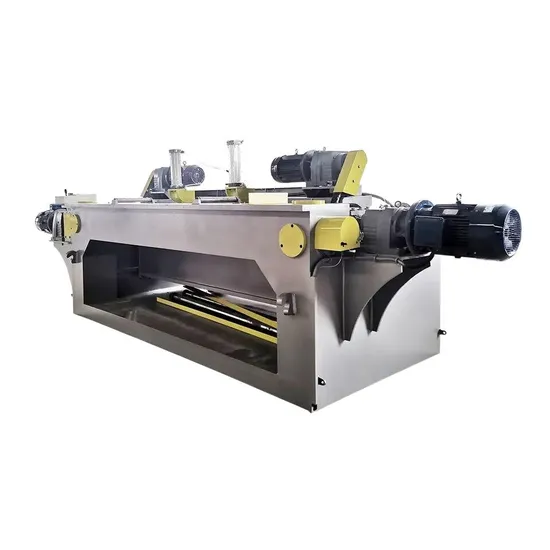

Heavy Duty Plywood Veneer Rotary Cutting Peeling Machine

Product Description

Main Technical Parameters

1	Model	WXQ2700-450
2	Log diameter	35-450 mm
3	Log length	2700 mmMotor
4	Final log diameter	35 mm
5	Veneer Peeling thickness	0.5-3.6 mm
6	Peeling knife size	2700*140*12.7 mm
7	Peeling speed	0-110 m/min
8	Total motor power	63 KW
9	Machine size	4900*2500*1450 mm
10	Machine weight	8500 KG

For our strong 8feet log peeling lathe, it uses good materials and parts and accessories, so it is very heavy, and for the power, each main motor power is big, so it is powerful to peel wood.
Except these advantages, we add the crane for peeling machine, thus it can lift the hydraulic knife holder easy, no need two workers to do it, because it is heavy.
Pre-sale service 1) Provide the free consultation of equipment 2) Provide the standard device and the flow chart
3) According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment .
4)Welcome to visit our factory
Service during the sales 1) Inspect the machine before leaving the factory 2) Oversea install and debug the equipment
3) Train the first-line operator
After sales service 1) 24 hours online service
2) Provide the VIDEO with install and debug the equipment 3) Provide technical exchanging
Detailed Photos

Company Profile
Linyi Zhonghe Machinery Company is professional in solutions of wood veneer production machine, plywood production machine, particle board machine, MDF board machine, saw mill machine, related machine, materical and spare parts for wood-based panel machinery.
Main business range is as following:
1-wood veneer production machine:
Log cutting machine, log debarker, core veneer peeling machine, face veneer peeling machine, wood veneer dryer, wood veneer clipper, wood veneer stacker, veneer tape, etc.
2-plywood production machine, film faced plywood machine:
Core veneer composer, putty spreader, veneer sanding machine, veneer jointer, glue powder, glue making machine, glue mixer, glue spreader, base plywood forming machine, cold press, hot press, boiler, Double Dimension saw, sanding machine, wood dust collector, stainless steel plates, cushion pads, etc.
3- Particle board machine and MDF board machine.
4-Saw mill machine: Vertical band saw, horizontal band saw, saw blade sharpener.


FAQ
1.Can the product be customized?
Yes, we support product customization. Customize different products according to your needs.
2.Does the product have after-sales service?
Yes, we offer both online and offline service with a one-year warranty and lifetime after-sales.
3.Why choose us?
Excellent quality and service, as well as cost-effective products.
4.How to ensure the quality of the product?
Welcome to our factory to see the production process.
5.Who is responsible for the installation and commissioning of the machine?
We have more than 15 technicians on site to guide, install and commission the equipment.

---
