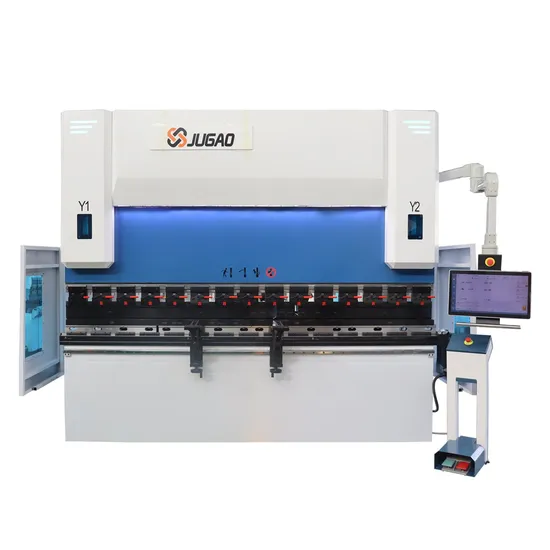

Jugao CNC Hydraulic Press Brake Machine Servo Hybrid Press Brake Sheet Matel Bending Machine 3-8 Axis with CE Certification

Product Description

JUGAO CNC Hydraulic Press Brake Machine Servo Hybrid Press Brake Sheet Matel Bending Machine 3-8 Axis with Ce Certification
CNC pump-controlled energy-saving CNC bending machine: equipped with the S860 series 2D CNC operating system newly developed by our company. The machine tool is a four-axis CNC machine tool: the X-axis is a servo drive axis, Y1 and Y2 are electro-hydraulic proportional servo axes equipped with grating data feedback, and the V-axis is a WILA electromechanical compensation axis. This model has the characteristics of high precision, fast speed, energy saving and no noise.
CNC Press brake with S860 CNC controller: Global Solutions for Innovation and Optimization
In today's fierce competition in the global manufacturing industry, the performance optimization and operational convenience of CNC bending machine systems are crucial to the factory's production efficiency and product quality. A leading Chinese manufacturing company recently independently developed a new CNC bending machine system called S860. This system not only replicates the Cybelec Touch 15 controller with high precision, but also further optimizes its performance. .
One of the most notable features of the S860 system is its remote mediation capability. This function allows Chinese engineers to directly correct system data on foreign customers' machines, greatly improving the efficiency of problem solving. This innovative solution not only saves customers time and money, but also avoids production interruptions due to equipment failure.
In addition, the S860 system also has 2D programming functions, making the operation process very simple. This intuitive programming method allows operators to get started quickly, greatly reducing reliance on professional knowledge. At the same time, the user interface design of the S860 system is friendly and intuitive, allowing operators to easily perform various complex bending operations.
The successful development of the S860 system fully demonstrates the innovation capabilities of China's manufacturing industry. While drawing on international leading technologies, through independent research and development and optimization, Chinese manufacturing companies have successfully met the needs of the global market and given themselves unique competitiveness in the global manufacturing industry.
Overall, the S860 CNC bending machine system provides a brand new solution for the global manufacturing industry with its excellent performance and convenient operation. Its successful research and development, promotion and application will undoubtedly promote the development of China's manufacturing industry to a higher level, and will also have a profound impact on the progress of global manufacturing. In the future, we look forward to seeing more innovations like this, bringing more vitality and possibilities to the global manufacturing industry.
1.Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.
2.Mechanical synchronised positive stop design,and by Estun NC programmable controller assuring accurate repeatability &ease of use.
3.Integrated hydraulic system(Bosch Rexroth form Germany)allowing rapid approach switching automatically to slow bend.
4.Inverter with E21 NC System operated back gauge with quality support fingers also with vertical adjustment
5.Inch, single mode being designed for the machine and reversing and maintain time can be controlled by the time relays.
6.Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety.
Technical parameter

Model	Nominal Pressure (kn)	Length of table (mm)	Distance Between Housing (mm)	Throat Depth (mm)	Stroke (mm)	Open Hight(mm)	Main Motor (kw)	Dimensions (L × W × H)(mm)
40/2000	400	2000	1600	200	110	335	4	2545×1510×2050
40/2500	400	2500	2000	200	110	335	4	2950×1510×2080
63/2000	630	2000	1600	250	110	350	5.5	2555×1600×2130
63/2500	630	2500	2000	250	110	350	5.5	2960×1600×2180
63/3200	630	3200	2600	250	110	350	5.5	3740×1600×2230
100/2500	1000	2500	2000	350	150	400	7.5	2980×1650×2330
100/3200	1000	3200	2600	350	150	400	7.5	3740×1650×2355
100/4000	1000	4000	3200	350	150	400	7.5	4550×1650×2450
100/5000	1000	5000	4000	350	150	400	7.5	5100×1500×2650
125/2500	1250	2500	2000	350	150	410	7.5	3980×1650×2370
125/3200	1250	3200	2600	350	150	410	7.5	3750×1650×2450
125/4000	1250	4000	3200	350	150	410	7.5	4550×1650×2470
125/5000	1250	5000	4000	350	150	410	7.5	5100×1500×2795
125/6000	1250	6000	4500	350	150	410	7.5	6100×1500×2895
160/2500	1600	2500	2000	350	150	425	11	2980×1715×2410
160/3200	1600	3200	2550	350	150	425	11	3750×1715×2450
160/4000	1600	4000	3200	350	190	450	11	4550×1715×2730
160/5000	1600	5000	4000	350	190	450	11	5100×1570×2900
160/6000	1600	6000	4500	350	190	450	11	6100×1570×3010
200/3200	2000	3200	2600	350	240	460	11	3750×1815×2715
