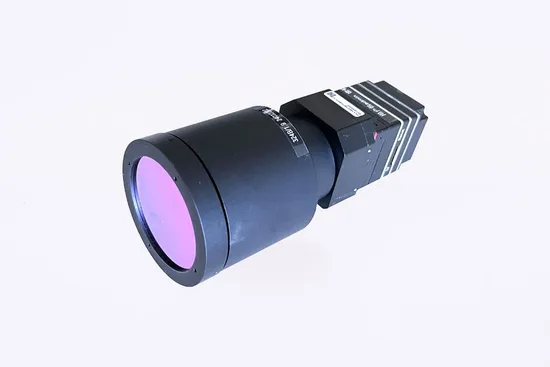

Macro Thermal Camera Infrared Thermal Imaging Circuit Board PCBA Assembly

Product Description

Product Overview Next-Generation 12μm Infrared Detector with Wide TemperatureMeasurement Range
Resolution: 640x512
Temperature Measurement Range:-20ºCto +650ºC
NETD: Less than 40mK, capable of distinguishing small temperature
differences of 0.04ºC, capturing more temperature details.
Rich Lens Configurations for Various Scenarios
Lens Options: 6μm, 12μm, 20μm, 30μm, 50μm resolutions.
High Frame Rate Synchronization with Intelligent Image
Algorithms for Clearer Imaging
25Hz temperature and image synchronous transmission, with intelligentimage algorithms, resulting in superior imaging quality.
Support for Professional Temperature Analysis Tools andSecondary Analysis Functions
Paired with professional temperature analysis software, it provides variousanalysis tools to help users easily achieve temperature monitoring and analysis.
Compact Size, Low Power Consumption, and Rich Interfaces
Two forms available, with rich functional interfaces and low power consumption design, reducing overall power usage and heat generation, therebyextending the device's lifespan.
Multiple Protocol Configurations with SDK for Easy Secondary Development and Integration
Supports SDK for Windows and Linux platforms, providing comprehensive support for user secondary development and integration.

Imaging & Optical Data
Thermal Resolution		640*512
Thermal Sensitivity/NETD		≤40mK
Image Frequency		25Hz
Digital Zoom		1.0~8.0 continuous zoom (in 0.1× increment)
Focus		Fixed
Optional Lens Parameters
Resolutio n	E.F.L	FOV	F#	Effective Distance
6μm	24mm	3.6mm*2.9mm	1.9	28mm~32mm(Typical 30mm)
12μm	32mm	7.7mm*6.1mm	1.4	50mm±1mm
20μm	30mm	13mm*10mm	1.4	50mm±0.5mm
30μm	31mm	19.2mm×15.4mm	1.4	95±1mm
50μm	24mm	32mm×26mm	1.4	100~105mm
Detector Data
Detector Type		Uncooled VOx IRFPA detector
Spectral Range		7.5μm~14μm
Pixel Pitch		12μm

Temperature Measurement
Object Temperature Range	-20ºC~+150ºC , 0~650ºC
Accuracy	± 2ºC or ±2% of the reading(The larger value shall prevail)
Auto Gain Switch	Yes
Temperature Data Transmission	Synchronous transmission of temperature data and image data
Temperature Measurement Calibration	Supports environmental parameter modification
Temperature Measurement Analysis	Point (12 points), line (12 lines), and area (12 areas) temperature measurement tool settings Isotherm settings Temperature scale display Thermal image capture with the capability for secondary analysis
Interfaces
Live Preview	Up to 8 channels
User Management	Up to 20 users, 3 levels: administrator, operator and ordinary user
Browser	Support browsers such as Google Chrome, Mozilla Firefox, and Edge
Analog Video Output	1 channel output
Network Interface	1 RJ45 port, 10M/100M adaptive Ethernet port
Alarm Interface	RJ45 interface: 1-ch alarm input, 1-ch alarm output
Network Protocols	IPv4, HTTP, HTTPS, SMTP, FTP, UPnP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP ,UDP, IGMP, ICMP, DHCP
Ethernet	Control and transmit images
Interoperability	Modbus TCP, ONVIF, GB28181, MQTT, RTSP
Image Adjustment

Color Palettes	Support 20 modes, including Black hot, White hot, and Rainbow.
Image Flip	Horizontal/Vertical/Horizontal&Vertical
ROI	Yes
Video Compression Standard
Video Compression Standard	H.264/H.265
Power Supply System
Typical Power Consumption@25 ºC	<2.4w
External Power Supply, Connector Type	PoE (Only RJ45 interface supported), DC
Voltage	9~15V, with a recommended standard voltage of DC 12V
Power Protection	Support reverse polarity protection
Environmental Data
Operating Temperature Range	-40°C~ +70ºC
Storage Temperature Range	-40°C~ +70ºC
Humidity( Operating & Storage)	<95%RH
General
Certifications	CE/FCC/RoHS/Calibration Certificate
Dimension	44×43×60(mm)(excluding lens)
Weight	112g(excluding lens)

---
