Low temperature glass ink

Product Details

Product Description

Product Description

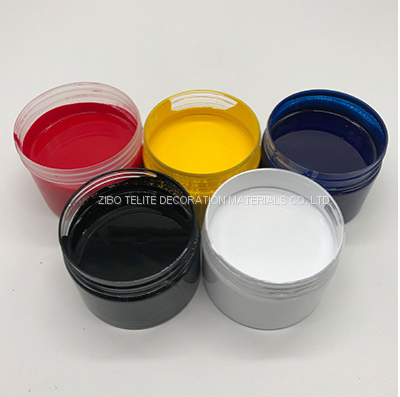

Glass enamel paint for glass surface
1.Complete set of colored glass pigment and enamels.
2.Firing temperature between 520 and 850 degree C.
3.Enamels can be good sifted on projects,after firing up to fixed temperature.
4.Mix enamels with Liquid Medium can get the color paste.
5.Screen printing.

Series	Firing Temperature	Content	Use
BG	520-580℃	Lead or Lead free	Bottle Glass
TG	670-720℃	Lead or Lead free	Tempered Glass
MG	760-830℃	Lead or Lead free	Melt/Mosaic Glass

Specification:
Ordinary glass paint

Model Number	Color	Usage	Applicable temperature	Remarks
GM4101	Red	Home Appliance Glass	660-720℃
GM4301	Blue		660-720℃
GM4201	Yellow		660-720℃
GM4401	Peacock Green		660-720℃
GM4501	Ochre		660-720℃
GM4601	Black		660-720℃
GM4602	Black		660-720℃
GM4801	Grey		660-720℃
GM4701	White		660-720℃
GM4001	Clear and clear		660-720℃
GM4610	Black	Automotive glass	660-720℃
GM4611	Black		660-720℃	Used for gluing glass
GM4612	Black		660-720℃	Matte finish

Lead-free glass material

Model Number	Color	Use	Applicable temperature	Remarks
GM8601	Black	Home appliances glass	660-720℃
GM8602	Black		660-720℃	Medium corrosion resistance
GM8701	White		660-720℃

*Support sample customization
Technical Parameter
Average particle size: D90≤6.5μm
Expansion coefficient: 75-95×10﹣7/℃ (50-300℃)
Sintering condition: 620-720℃/2-15min (temperatures vary according to product numbers)
Sintering atmosphere: Neutral or weak oxidizing atmosphere
Acid resistance: There is no obvious corrosion on the surface if the product is immersed in 3.5% hydrochloric acid solution for 10~15min at the room temperature
Alkali resistance: There is no obvious corrosion on the surface if the product is immersed in 10% sodium hydroxide solution for 10~15min at the room temperature
Hiding power: Related to the printing thickness, complete hiding is available
Screen printing condition: 150-300 mesh
Material-oil ratio: Powder:varnish = 1:0.25~0.3
Packaging: 25kg/bag or 25kg/drum
