Sddom Small Mobile Portable 25m3/H 35m3/H Concrete Mixing Plant

US$56,481.00 1 Set (MOQ)

Basic Info.

Condition
New
Mixing Drum Shape
Disc
Stirring Type
Spiral
Working
High Speed Mixer
Feeding Volume
1800kg
Discharging
750L
Power
36.5kw
Weight
8.8t
Size
6581X2530X2937mm
Aggregate Belt
Five Layers of Nylon
Aggregate Bin
3.5m3X2
Discharging Height
1m
Control
PLC
Mixer Type
Powder Mixer
Application
Liquid with Suspended Solids, Powder, Liquid
Layout Type
Horizontal
Additional Capabilities
Milling, Drying, Granulating, Coating
Operating type
Cycle Operating
Transport Package
Container Transport
Specification
25m3/h
Trademark
SDDOM
Origin
China
HS Code
84743100
Production Capacity
20/25m3/H

Product Description

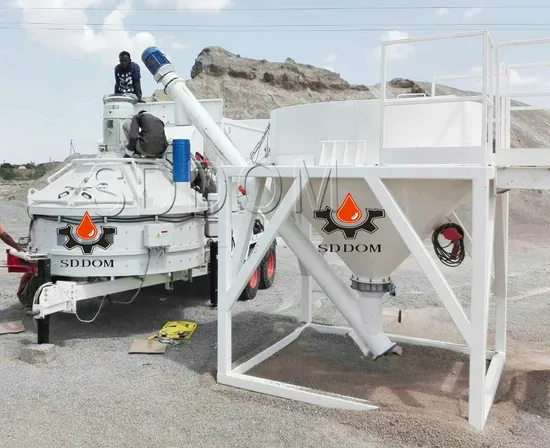

Sddom Small Mobile Portable 25m3/H 35m3/H Concrete Mixing Plant
Patent No. ZL201420493942.3
Brief introduction
In the light of the small concrete market, we developed this kind of mobile concrete batching plant according to the European standard.solves the problems of installation, transport and limited working space of traditional concrete batching plant.
Comparision with traditional stationary concrete batching plant
Item Our mobile concrete plant Traditional fixed concrete plant
Installation 2 days, 2-3 workers 7 days, more than 3 workers
Concrete foundation No foundation, save money and time Needs strong concrete foundation
Transfer working site No need of dismantling, One trailer to tansport the whole plant Dismantle the concrete foundation, the equipment; several trailers to transport the whole plant
Covering area 6581X2530mm More area

Model
Application :
the mobile concrete batching plant can be applied in Ceramic industry ,glass industry,concrerte industry ,can produce concrete(concrete hollow block,decorated wall,cement block,permeable block,lawn block,concrete pipes ,running piping,building precastings,motar board and so on ),function refractory(specifical refractory,unshapedfractory materials),ceramics,glass.

you can choose item1-6 according to your requirements

Packing and shipping
