Basic Info.
Cutting Ability
Medium Speed
Motor
220V,3~,60Hz Motor Avaliable
Cutting Capacity /Length
600mm
Transport Package
Wood Case or Carton
Trademark
G & G or can use customer brand
Production Capacity
1000 Sets/Month

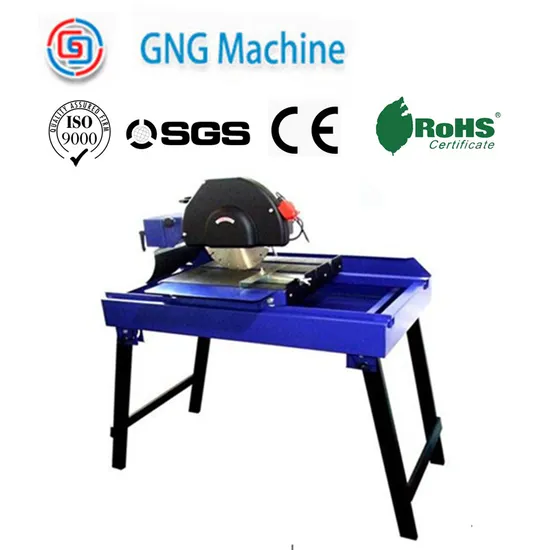

Product Description
Rated input Power:3HP/4HP
Motor: 220V,3~,60Hz motor avaliable
Blade diameter:300/350mm
Blade arbor:25.4mm
Cutting capacity /length:600mm
Cutting capacity /thickness:85mm
table size:500x510mm
Optional:Laser guide.
Mobile wheel kit
NOTE:
1.there are two different blade cover for your choice,steel cover(see left picture)is standard,which could be changed by plastic cover(see right picture)without price difference;
2.The stand legs now all are the right pic shown,not left pic shown,are folding.
one compreg: 1145X695X580mm 64sets/20'container.
Normal equipment with 3HP motor and 12" blade,if change 4HP motor and 14" blade the difference price should be : $17.00 and $14.00.
The 14" blade is $51.00/piece.
Product advantages
1. Powerful motors produce the most demanding installation work up to 2000 - 3000 rpm
2. Cut tiles, tiles, marble, granite and stone.
3. Durable steel table and frame with rubber foot mats for stability.
4. Includes table extension to support either side of large tiles during cutting.
5. The flat table design provides unlimited tile sizes for joints and diagonal cuts.
>>
