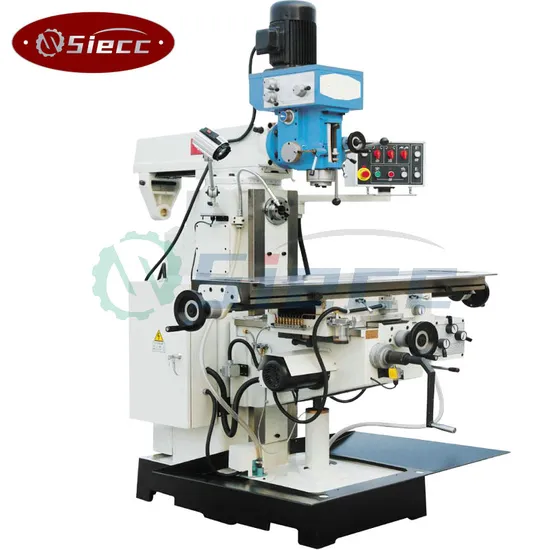

X6336wa Horizontal and Vertical Type Milling Machine with High Quality

Product Description

The turret milling machine X6336WA is made of advanced cast iron, with high precision and long life after manual aging treatment.The lifting platform adopts rectangular guide rail, the contact surface is much, rigid foot.After high frequency processing and fine grinding, the sliding way is plastered, the motion precision and life are good.The main shaft of turret milling machine is made of chrome molybdenum alloy. It is equipped with precision Angle contact bearing. It is processed by tempering and fine grinding, with strong cutting force and high precision.

Item	X6336WA
Spindle taper	ISO40(V) ISO50(H)
Diameter of quill	120mm
Distance from spindle to table	135-585mm
Distance from horizontal spindle to table	0-390mm
Distance from spindle to column	200-700mm
Spindle speeds	(16steps )70-4660r.p.m.(V)
Spindle travel	(12steps)60-1800r.p.m(H)
Feeding of quill	145mm
Max drilling capacity of auto-feeding	(3steps)0.04 0.08 0.15
Head movement	15mm
Table size	45 degrees
Table travel(horizontal/cross/vertical)	1370*360
Feeding range of longitudinal cross travel	1000*320*450
X,Y-axis rapid feed speed	(8steps)22-555mm/min
Z-axis rapid feed speed	1080mm/min
Z-axis motor power	590mm/min
Max weight of workpiece	1100W
T-slot number /width/distance	500kg
Horse power for main motor	3/18mm/70mm
X,Y axis driving motor	5.5kw(V) 4.0kw(H)
Overall dimension	750W
N.W./G.W.	2220*1790*2360mm

Company	Shining Industrial Enterprise(China) Co., Ltd Nantong Brillante Industrial Enterprise Co., Ltd Edward Pearson Machinery (Shanghai) Co., Ltd NANTONG LIANZHONG MACHINE CO., LTD JIANGSU GOLD-PARTNER ENTERPRISE CO.,LTD
Brand	SIECC/EDWARDS PEARSON/HECTMAC
Website	braillante.en.made-in-china.com braillante.en.made-in-china.com braillante.en.made-in-china.com braillante.en.made-in-china.com
Video	1. Rolling https://youtu.be/Fi3tFKSoLlY 2. Press brake https://youtu.be/pyIChKoh1eA 3. Grooving https://youtu.be/pFZh_n3vrss 4. Ironworker https://youtu.be/0O9OeCmu9QI 5. Plasma cutting https://youtu.be/71BKxv6tVB8
Facebook	https://braillante.en.made-in-china.com
