Full-Auto Stainless Steel Aquaticulture Applied Fish Pellet Machinery

Product Description

Full-auto Stainless Steel Aquaticulture Applied Fish Pellet Machinery
1.Product Description
The fishing float making machinery and inflating production machine line can produce both floating and sinking feed pellets for fish, shrimp, crab, etc.
According to different fish varieties, the feed type will be various. And different ages fish require different sizes feed pellet. Our twin screw extruders can produce floating and sinking feed size range 1.2-12 mm by adjusting temperature, moisture, formulation and changing moulds.
Our fishing float making machinery also can be used for dry pet food production, such as dog food, cat food, bird feed, monkey food, etc.
Machine shield : 201 sus / 304 sus as required Parts contact with food : 201 ss / 304 ss as required Screw / barrel and cutter of the extruder : special alloy to bear high temp and pressure Main motor: Siemens brand Touch screen : Wenview brand Miniature circuit breaker : ABB brand Alternating current contactor: ABB brand Thermal Relay: ABB brand Moulded case circuit brake : CHNT brand Small relay: Weidmuller brand Inverter: Delta brand PLC system: Delta brand Burner: Baltur brand 2.Sample Show
3.Technical Parameters

Model	Installed Power	Consumption Power	Production Capacity	Dimension
HM-65	70KW	40KW	120-150kg/h	22000*1200*2200mm
HM-70	90KW	50KW	200-250kg/h	24000*1500*2200mm
HM-85	120KW	100KW	400-500kg/h	28000*3500*2300mm
HM-90	96KW	80KW	800-1000kg/h	30000*3500*2300mm
HM-95	180KW	120KW	800-1000kg/h	45000*2500*2500

4.Detail of the machine parts

	Mixer Vertical stirrer are able to perform even mixture for large volume of materials in short mixing time by utilizing the paddles rotation to gather the material from the bottom of dump center to the top, shed the material flow back to the bottom and complete the mixing in short period of time		Screw Conveyor It can hoisting the mixed material from the mixer into the extruder machine
	Double Screw Extruder Extruding the mixture into different shapes of dog food,fish feed based on different parameters (INCLUDING: storage bin, Double Axis Conditioner for pre cooked, Support Platform, Center Cutting System 2 Free Moulds)		Dryer This kind of oven has a wide range of application. It can dry all shapes of puffing food, including strip, lump, granular materials etc, as well as other types of materials.
	Spray-spraying machine To make food overturning inside the coating drum, to catch more oil and flavors. The materials, flavoring and oil are stirred and mixed in the roller until well distributed.		Cooling Machine Mainly applicable to a varitey of granular material cooling. Adopted countercurrent cooling principle, full cooling and unformity.

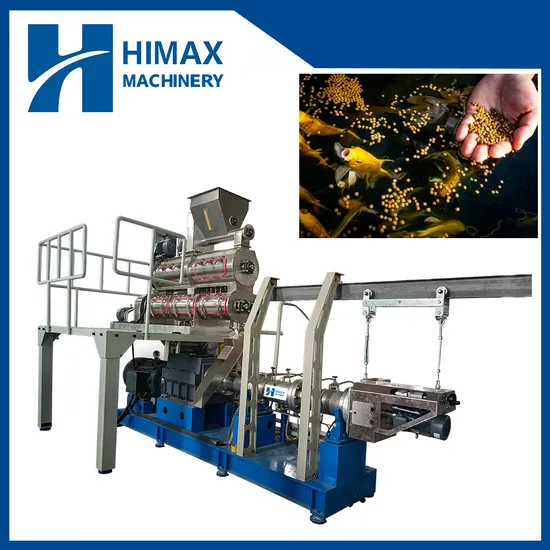

Main Machine Details:twin-screw extruder and gas dryer
5.Quality Control
HIMAX company is in strict accordance with the industrial standards for cutting, bending, welding, strict control of process quality,
check whether the machine is qualified before delivery, to ensure that every machine for the customer is qualified artware selected carefully by HIMAX company.
6.Packing And Delivery

Packaging Specification	Outside Pachage:Wooden Packing as Exportand Standard.
Delivery time	20-25days after received 40% of the whole payment.
Shipping forwarding	We can be resonsible for the shipping ,of course,we can also accept and cooperate with your agent if you have shipping forwarder in China

7.Company Information
Jinan Himax Machinery Co., Ltd. is a professional supplier of food processing machines for 12Years. We have many kinds of machines and production line, such as food extrusion machine, soya meat production line, industrial microwave oven, packaging machine, pet food production importantly, we also provide formulas, technology supports, machine inspection s
ervice, etc. Cooperating with different manufacturers and research centers, we provide the food processing machines with outstanding quality. We have a group of experienced experts and outstanding engineers who do provide the professional service ,delivery and installation. Based on the clients specific requirement, we also OEM machines for our clients.
8.Our Srevices -- Before sale service
1.Provide the free consultation of the equipment.
2.Provide the standard device and the flow chart.
3. According to the clients' special requirement, offering the reasonable plan and free design helping to select the equipment.
--Services during the sales:
1.Help client design the factory and offering professional advice, free engineering drawing for the factory layout
2.Welcome to visit our factory or the domestic clients' factory.
3.Inspect the machine before leaving the factory.
--After sale services:
1. Oversea install and debug the equipment.
2. Train the first-line operator.
3. Provide the basic formula.
4. Operation/ Service/ Maintenance Manual: Provided In English.
5. 1-2 engineers will be arranged for custom

---
