1 Year Aluminium Milling Drilling Tapping Boring Gap Bed Metal Lathe

Product Description

Product Description
(SUPER GOOD QUALITY ONLY!!!)

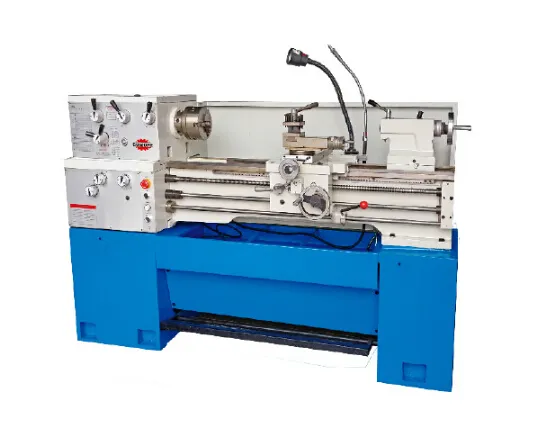

356x1000mm 52mm bore Universal Metal Horizontal Thread Lathe Machine Price
(Our lathe can be from small to big size, the web pages are limited, so please contact us for more details, we believe that there must be suitable models for you)
38mm or 52mm bore Center Manual Universal horizontal Bench Lathe Machine SP2143Quick Detail: Main specification of gap bed lathe machine:
Processing material: aluminum, copper, metal etc.
Workpiece length: 1000mm
Swing over bed: 356mm
Effective length of gap: 180mm
Spindle bore: 40/52mm
Description:
SP2143 Horizontal lathe we sell is under new condition not used lathe machine, this manual lathe machine is with swing 356mm for light industrial, the motor power is 2.2kw powerful. Foot brake is rapid braking type. It is produced in China almost same quality like machines made in japan lathe machine, made in Germany lathe, made in Taiwan lathe and made in Korea lathe. Feature / advantage of lathe machine is as below:
Hardened and ground bed ways engineered from high grade castings. Removable gap is provided for larger diameter work and easy operating gear box can be various feeds and thread cutting. 12 speeds all geared head stock. Cross and longitudinal interlocking feed, enough safety All machines have to pass the checklist of the machine precision before shipment Including switch for test running There is extra safety switch shuts down machine automatically for changing belt or gear for threading cutting. Jog button for easy gear engagement and inching spindle. Metric/Imperial threading available. Carriage rapid feed is available. Customized color, LOGO , voltage or frequency.
Product Parameters

Model	SP2143
Max. Swing over bed	356mm
Max swing over cross slide	210mm
Max. Swing over gap	508 mm
Effective length of gap	180mm
Distance between centers	1000mm
Width of bed	260mm
Spindle bore	40/52mm
Spindle nose	ISO- D4
Spindle taper	MT5
spindle speed	(12 steps) 40-1800rpm
Range of longitudinal feed	37kinds 0.043-0.653mm/rev
Range of cross feed	37kinds 0.024-0.359mm/rev
Range of Metric thread	37kinds 0.4-7mm/rev
Range of Imperial thread	28kinds 4-56inch
Dia. of main screw	22mm
Pitch of main screw	4mm or 8T.P.I
Dia. of tailstock sleeve	45mm
Taper of tailstock sleeve	MT3
Max. travel of tailstock	120mm
Main driver power	2.2 kw
Coolant pump motor	40W
Package size(L*W*H)	190*75*150cm
Weight(N.W/G.W)	1150/1350kg

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs , UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!

---
