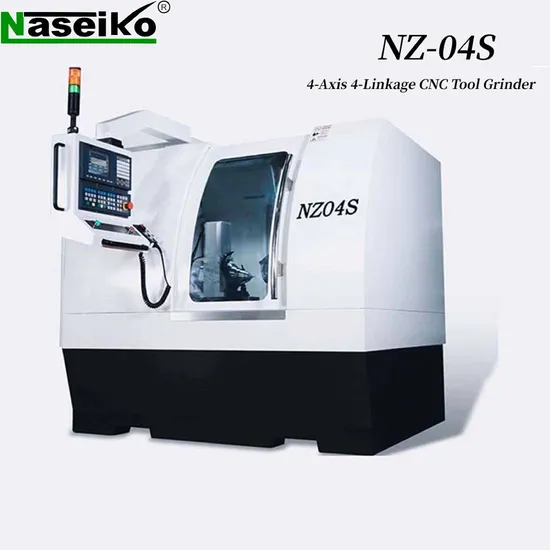

Naseiko Nz-04s Precision Milling Cutter Grinder Four-Axis Four-Linkage CNC Tool Grinding Machine

Product Description

Detailed Photos

Product Description
Suit for standard milling cutters, aluminum processing cutters, arylic milling cutters, chamfering cutter and tap slotting.

The multi-station and multi wheel group grinding ensure the quality and efficiency of tools.

Front and rear doors of the grinder could easily unrestricted debugging and maintenance.
The protective cover keep safety when production.

All axes are equipped with high precision and resolution imported servo motors and screw guides for high quality and efficiency.
X-axis/Y-axis, horizontal straight CNC axis, Taiwan servo motor, THK precision ball screw, THK precision roller guide rail.

Z-axis, vertical straight CNC axis, Taiwan servo motor, THK precision ball screw, THK precision roller guide rail.

A-axis, rotating CNC workpiece axis, DD direct drive motor.

Z-axis, increasing the angle rotation center of the column, and configuring an angle encoder to ensure repeated positioning accuracy when replacing different thread angles and adjusting the size efficiently.
Marble overall.

Sealed hood with painting for easy adjustment and maintenance.

The CNC operation panel is installed upon the hood with magnetic easily movable handwheel.

A special high-speed slotted electric spindle, which could be installed with one to three grinding wheels. It would be disassembled as a whole to the grinding wheel trimming machine.
The side and vertical shafts adopt Taiwan's high-precision direct connected electric spindle.

The spindle motor adopt variable frequency control regulation.

The machine is equipped with sealed tubular oil-proof fluorescent lamp.

Installed with external automatic loading and unloading robet for increasing the lifespan. (Optional)

Product Parameters

PROJECT	UNIT	NZ-04S
Linear axis	-	CNC four axes linkage linear axis
Drive	-	Imported servo motor drive
Stroke (X/Y/Z axis)	mm	240/ 300 / 190
CNC system resolution (X/Y/Z/A axis)	mm	0.0001
Minimum resolution for programming of handwheel feed (X/Y/Z/A axis)	mm	0.0001
THK screw (X/Y/Z axis)	-	BN-FN25-C3
THK guide rail (X/Y/Z axis)	-	SHS-25V ( level P)
Repositioning accuracy (X/Y/Z axis)	mm	0.003
Workpiece rotation axis (A/B axis)	-	(rotation shaft)
DD servo drive (A/B axis)	-	(direct drive)
Quick movement (X/Y/Z axis)	m/min	7.5
Maximum workpiece weight	kg	5
Linear resolution	mm	0.0001
Linear repeating positioning accuracy	mm	0.003
Rotation resolution	mm	0.0001
Rotation Repeating Positioning Accuracy	degree	0.001
Spindle power	kw	15(optional: 15-20KW permanent magnet frequency control motor)
Machine weight	kg	4000
Total power	kw	≤30kw

Packaging & Shipping

Company Profile
Naseiko, a global leader in providing comprehensive solutions in the tungsten carbide industry, focusing on manufacturing high-quality tungsten carbide products and related sophisticated automatic machines, are committed to delivering integrated solutions to meet the needs of our worldwide customers in this industry.- Our extensive product line covers a wide range of applications in the tungsten carbide industry. We offer top quality products such as high precision CNC insert, milling cutter, carbide burrs, industry knife, wear-resistant components, carbide tools. These products are manufactured using advanced techniques and premium hard alloy materials, ensuring exceptional hardness, toughness, and wear resistance.

- Except supplying superior quality carbide products, Naseiko also provide a wide range of equipments and solutions specifically designed for tungsten carbide production. Our state-of-the-art equipment includes high-precision electric servo pressing machines, Five axis linkage CNC grinding machines, Five axis linkage CNC grinding machines, and all kinds of high precision carbide mold. Our advanced machines help our customers to enhance production efficiency, ensure high machining precision and maintain consistent product quality.
FAQ
Q: What is your product line?
A: CNC grinding machine, CNC mismatch grinder machine, Electronics servo press machine, Precision Grinding Wheel Dressing Machine. Carbide end mill, carbide burr, dental burrs, and other tungsten carbide items,etc.
Q: Is ODM or OEM production supported?
A: Yes.
Q: What is MOQ for your product?
A: For standard models machine, MOQ is 1 set ;
For OEM ODM customized machine, MOQ is from 10 sets.
For carbide tools, MOQ is from 1000 units.
Q: How long is the delivery time?
A: For standerd Naseiko machine, it is about 1-2 months after order confirmed;
For customized machine, it will be 6~12 months after order confirmed;
For customized milling cutter or carbide burrs, it is about 1 month.
Q: Where is your loading port?
A: Shanghai / Guangzhou ,China port.
Q: How do you implement equipment warranty overseas?
A: At present, we have contracted after-sales service points overseas, and in the future, we will establish our own after-sales service centers in key overseas markets.
Q: What are your benefits superior to other suppliers?
A: Naseiko Intelligent technology is a manufacturing enterprise with years of industry experience, focusing on the research and production of CNC tool grinders. Our team has rich experience and professional knowledge in this field. We have international advanced testing equipment, excellent craftsmanship and refine quality management system, as well as professional team. It ensures our products stable and reliable.

---
