Product Details
Product Description
Product Description
Customized dongfeng brand 4*2 LHD 4T flatbed wrecker towing truck adopts dongfeng duolika 4*2 LHD 2050mm single row driver cab, 3800mm wheelbase, CY4102BZQ 120hp diesel engine, 5 speed gearbox, air cut braking, 7.50R16 rail tires, power steering+ wheel steering, etc.
The loading capacity of the flatbed type wrecker tow truck is 4tons, and the length of the flatbed is 5.6m; the width of the flatbed is 2.3m; while the length of the tail plate is 1m, which can be designed and manufactured as hydraulic folded flipping plate. So the length of the flatbed of dongfeng duolika wrecker tow truck is 6.6m (5.6m+1m),
The standard devices of dongfeng duolika 4*2 LHD road wrecker tow truck as below
1, 3 tons loading capacity for the upper part/flatbed
2, 4T hydraulic winch and 20m length wire rope
3, Retractable Rear Lift Arm (choose to install)
4, auxiliary wheels*1
5, bilateral linkage control valve
6, fully hydraulic flipping plates
7, yellow color alarm light
8, 4* special binding belts
If you're interested in our wrekcer towing truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: 0086 13329899995.

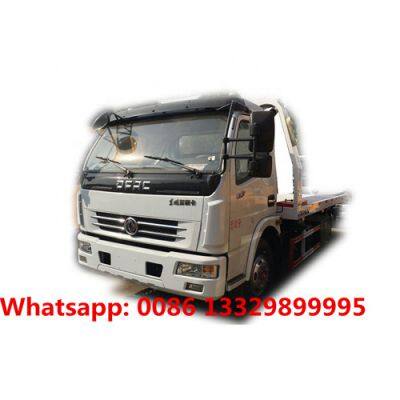

More pictures of Dongfeng Brand 4T street wrecker towing truck is as below.
Main technical parameters of dongfeng 4tons wrecker towing truck is as below.
Overall parameters
| Product name
| dongfeng 4 wrecker tow truck for sale （CLW5070TQZP3）
|
Manufacturer
| Chengli Special Automobile Co., Ltd.
|
Product model
| CLW5070TQZP3
|
Total mass(kgs)
| 7490
|
Curb mass(kgs)
| 5495
|
Overall dimension (L*W*H)(mm)
| 7420×2300×2540
|
Chassis parameters
| Driver cab
| dongfeng 4*2 LHD single row driver cab with 3 seats
|
Approach/departure angle(°)
| 20/10
|
Front/rear suspension(mm)
| 1180/2440
|
Axles nos.
| 2
|
Wheelbase(mm)
| 3800
|
Axle load(kgs)
| 3150/4340
|
Max speed(km/h)
| 90
|
Tire specification
| 7.00R16 8PR*6
|
Steel spring
| 11/9+7,8/10+7
|
Front/rear tread(mm)
| 1835/1640
|
Engine model
| Yuchai 120hp
|
Fuel type
| Diesel
|
Emission standard
| Euro Ⅲ
|
Gearbox
| 5 speed gearbox, manual
|
Upper part parameters
| Flatbed dimension(L*W)(mm)
| 5600*2300
|
Rear hydraulic flapping plate Length (mm)
| 1000 (it is selective)
|
Total flatbed length (mm)
| 5600+1000
|
Hydraulic winch
| 4tons
|
Operation way
| Bilateral linkage operation
|
Rear towing arm
| 2.5tons loading capacity fo the rear towing arm
|
Loading capacity of the flatbed
| 4tons
|
Wire rope
| 20m length
|
Auxiliary wheels
| 1 sets
|
Special binding belts
| 4 sets
|
Yellow color alarm light
| Yes
|
>>
