High Quality 5L Short Path Distillation with Competitive Price

Product Description

High Quality 5L Short Path Distillation with Competitive Price
Short-path distillation is designed according to the principle of molecular distillation and is a model for simulating molecular distillation. Because the distance between the heating surface and cooling is very close and the resistance is small, it is called short-path distillation. Due to the function of the built-in condenser, it can instantly liquefy the vaporized vapor phase and shrink the volume, so it can maintain a high vacuum inside the equipment. The operating vacuum of the short-path distiller can reach 1Pa, which is difficult to achieve by other evaporation and distillation equipment. Therefore, the short-path distillation is especially suitable for materials with high boiling point under normal pressure, which are difficult to be separated by ordinary separation methods. As a new type of liquid separation The equipment has been successfully experienced in many industries.
Features:
(1) The separation operation can be realized at the temperature of the boiling point of the material, as long as the pressure of the system is lower than the saturated vapor pressure of the light component of the material and
The distance between the heating surface and the condensation surface is less than or equal to the molecular mean free path of the light components. separation can be achieved.
(2) There is no bubbling and boiling phenomenon, which is conducive to maintaining a high degree of vacuum in the whole system. Product Parameters

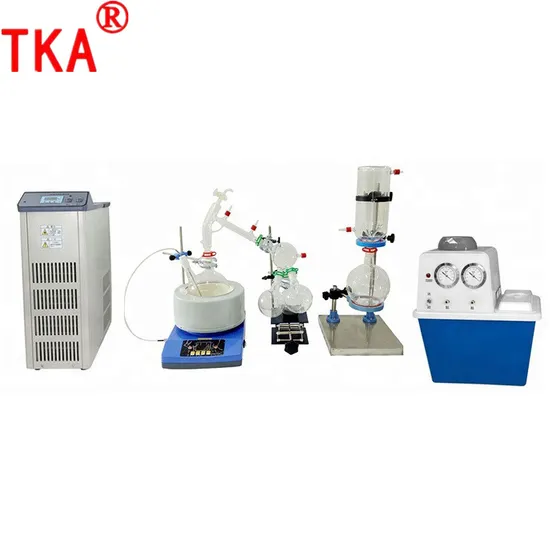

5L Short path distillation	QTY
Round bottom flask,5L,3port,the middle port is 34/45.	1
Short path distillation head,with vacuum jacket,with 5L system	1
24/40 fractionator,	1
24/40 round bottom flask 1000ml	2
24/40 round bottom flask 500ml	1
Electrical heater(Control temperature range,room temperature~300ºC)	1
Standard port clamp,stainless steel	3
Standard port clamp,plastic	4
Stainless steel Lifting paltform	3
Cork flask holder	2
Cross CL	1
Iron support	1
Cold trap	1
1L cold trap receiving flask	1

Package&Shipping
Package Detail
1) Wooden packing
2) The goods can be shipped by sea, air or train, small goods or spare parts will be shipped by express.
3) You can choose your own freight forwardwe as well.
4) Door to Door Delivery to save your energy and time. We'll take the all risks during transportation. Shipping Details
1) AMERICA:3-8 working days.
2) ASIAN:3-8 working days.
3) EUROPE:5-10 working days.
4) OCEANIA:4-9 working days.
5) AFRICA:7-13woring day. Company Profile
Xi'an Taikang Biotechnology Co., Ltd, is a famous manufacturer of Lab equipment located in the central China. Now has TAIKANG, TKA two well-known brand trademarks. The main products include ultra-high temperature and high pressure reactor, high pressure photochemical reactor, supercritical high pressure reactor, high pressure glass reactor, micro high pressure reactor, high pressure ultrasonic reactor, Ultra-high temperature hydrothermal synthesis reactor, photocatalytic reactor, visual catalytic reactor, hydrothermal synthesis reactor, rotary evaporator, parallel synthesis reactor, high and low temperature circulator, high and low temperature high pressure tubular reactor and other equipment and so on. Specialize in this field for more than 20 years,TKA brand instrument has own high reputation in more than 70 countries and regions, provide technical support for tens of thousands organizations to solve problems within their research, special for university, research institutes, industries, inspection agencies, etc. Promoting technology progress and improving human life is TKA social mission. We welcome new and old customers from all over the world to contact us for future business relationships and achieving mutual success! Exhibition Show
Certifications

FAQ
Q1:Are you trading company or manufacturer?
A1:We are professional manufacture of lab equipment and we have our own factory which is a high-tech enterprise integrating R&D, production and sales. And welcome to visit our factory.
Q2: How long is your delivery time?
A2: Usually, delivery time is 30-45 days after receiving your payment.
Q3:How to shipping the replacement parts?
A3:We will according the actual situation to choose the suitable shipping ways. For small parts we shippin by Express.
Q4: How about your quality warranty ?
A4: Normally all TKA products are supplied with a warranty of 12 Months from the date of shipment.
Q5: Do you accept OEM and ODM orders?
A5: Yes,We accept.
Q6:What is your terms of payment?
A6:Payment≤15,000USD, 100% in advance. Payment≥15,000USD, 70% T/T in advance, balance before shipment.
(If you are concerned about payment security for the first order, we advise you can place Trade Assurance Order via Made in China. you will get 100% payment refund if we can't meet agreed delivery time.)
Q7:Can we visit your factory?
A7: Welcome visit our factory.

---
