High pressure Stainless steel valves Chinese factory gauge valves Swagelok type instrument valves

Product Details

Product Description

Product Description

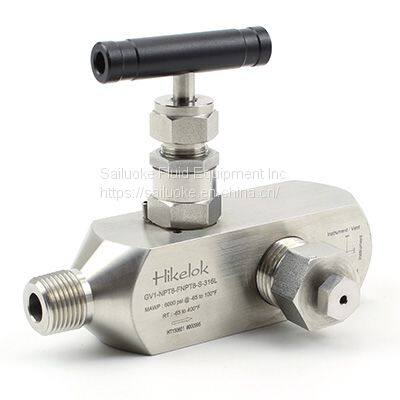

Gauge Valve- GV1, GV2
* Maximum working pressures:
GV1 up to 6000 psig (413 bar)
GV2 up to 10000 psig (689 bar)
* Working temperature:
PTFE packing: from -65℉ to 450℉ (-54℃ to 232℃)
Graphite packing: from -65℉ to 1200℉ (-54℃ to 649℃)
* Orifice size: 0.16" (4.0 mm)
* Non-rotating lower stem, ball tip design
* Safety back seating seals in fully open position
* Rolled spindle operating threads
* Lubricant for stem thread isolated from the media
* Low torque operating T bar handle
* Handle of different colors available for option

---
