US$10,000.00-30,000.00
|
1 set
(MOQ)
|
Basic Info.
Model NO.
YQ32 Hydraulic Press machine
Processing Object
Mixed Feed
Processing Technics
Mixing-before-Crushing
Screen Mesh
With Screen Mesh
Grinding Equipment Type
Feed Hammer Mill
Pellet Mill Type
Screw Granulator
Bulking Machine Type
Twin Screw Bulking Machine
Expanding Method
Dry Expansion
Applicable Materials Shape
Powder
Color
White Hydraulic Press Briquetting Machine
Name
Mineral Block Hydraulic Press for Animal Licking
Function
Licking Protein Salt Mineral Block Making Machine
Keyword
Salt Licking Block Hydraulic Press
Power Source
Cattle Breeding Farming Block Making Machine
Usuage
Automatic Hydraulic Press
Transport Package
by Ship/by Container
Specification
1350*1050*3700mm
Production Capacity
100 Sets Per Month
Product Description

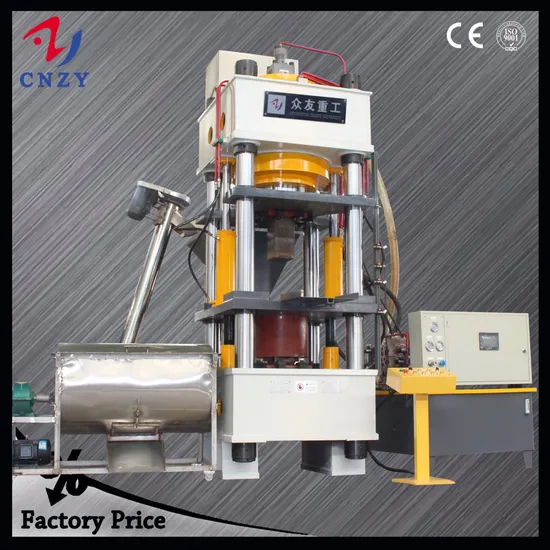

salt powder molding mineral block hydraulic press Briquetting machine for animal licking
parameter of mineral block making press machine
parameter name | Unit | YQ32-63A | YQ32-63B | YQ32-100A | YQ32-100B | YQ32-160 | YQ32-200A |
Nominal force | KN | 630 | 630 | 1000 | 1000 | 1600 | 2000 |
Hydraulic system maximum pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 |
Max opening height of the slide | mm | 500 | 700 | 800 | 800 | 800 | 800 |
Max stroke of the slide | mm | 360 | 400 | 500 | 500 | 500 | 400 |
Workbench effective area | mm | 410×450 | 610×500 | 630×550 | 750×700 | 660×600 | 800×800 |
Ejector cylinder nominal force | KN | 100 | 100 | 200 | 200 | 400 | 400 |
the stroke of the eject | mm | 160 | 160 | 200 | 200 | 200 | 220 |
Slider speed | down mm/s | 100 | 100 | 100 | 100 | 100 | 100 |
press mm/s | 5-10 | 5-10 | 5-10 | 5-15 | 5-10 | 5-10 |
return mm/s | 90 | 90 | 90 | 90 | 90 | 90 |
Characteristic of salt mineral block machine:
1, using advanced PLC hydraulic transmission technology, high technology, low failure rate, high degree of automation, high efficiency.
2, the host structure is compact, small footprint, easy to move and transport.
3, four-oriented structure, molding pressure, high density of pressed products, not broken.
4, hydraulic pump station structure design is reasonable, highly concentrated hydraulic control valve block and a unique design of the hydraulic system to make the hydraulic system perfect, and effectively achieve the continuity of normal production.
5, replace the mold can live Participation in various specifications of the salt block, weighing up to 2kg ~ 25kg, to achieve the product diversification needs and reduce investment costs.
6, the electrical control program to achieve a human-computer interaction, simple operation, convenient and quick.
7, low failure rate, heat a small, high efficiency, energy saving and durable.
mineral brick making machine Usage:
Salt brick is through the material, broken, drying, mixing, pressing, packaging and a series of process production. One of the most important aspects is to lick the salt pressure, the important equipment used is lick salt briquetting machine.
Our company produces lick salt briquetting machine is a hydraulic briquetting machine equipment with high pressure, can be one-time molding, pressing density, pressed out of the product appearance bright and clean appearance.
function of automatic hydraulic press machine
Four column hydraulic press machine | function of machine |
deep drawing press machine | deep drawing tray/wheelbarrow deep drawing water/kitchen sink deep drawing Aluminum pan/pot deep drawing iron pot/basin deep drawing Vessel dish end |
stamping machine | stamping shovel making machine stamping coin making machine metal sheet/tag stamping machine stainless steel utensils stamping stainless steel pipe stamping steel door stamping machine metal plate/steel hole stamping |
powder forming press machine | Aluminum/Metal Chip Briquette melamine dinner set making machine salt lick mineral block making machine |
pressed product:
500ton 10kg animal licking salt block hydraulic oil press machine Technical advantages:
1.Hydraulic hydraulic oil press machine body using high-quality carbon steel, precision welding, seam parts to take tempering to ensure that the body strength.
2.Especially the base parts, will use cast steel structure, to ensure that the hydraulic oil press machine body will never deformation.
3.Top cylinder with 45 # round steel technology, precision grinding, to achieve the work of ultra-quiet technology.
Packaging and shipping of salt mineral block brick making forming press machine:
1. inner layer is made of plastic film rust-proof packaging,
2. the embossing machine outer layer is reinforced by reinforcing the synthetic board,
3. separate container can be used.
other as requirement
>>
