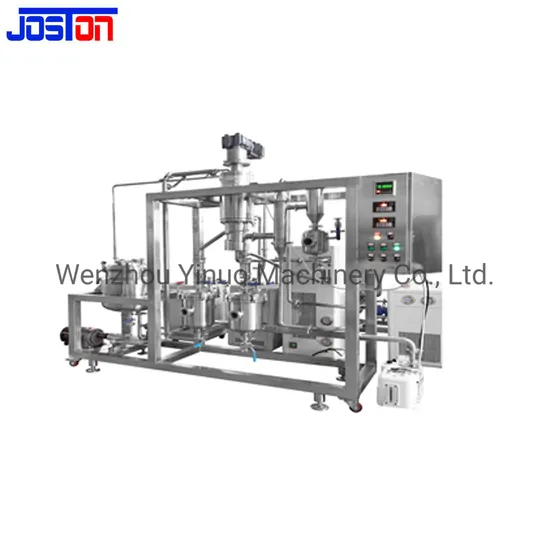

SS316L Hemp Oil Fish Oil Flower Oil Making Evaporator Agitated Film Vacuum Short Path Molecular Distillation Machine

Product Description

Short path molecular distillation (short-path distillation) is a new separation technique that addresses the problems that conventional distillation techniques cannot solve. It can achieve "liquid-liquid" separation at very low vacuum according to the mean free path difference of molecular motion under the temperature of much lower than the liquid boiling point; Mainly the use of scraper system forcing liquid film evaporation or distillation of a highly efficient evaporation, distillation equipment, deodorization, degassing reaction and supporting heating, cooling and other unit operations, can be widely used in food, fine chemicals , Electronic materials, plastic engineering and polymer (such as polyols, fatty acids, polyphenols, polyurethanes, epoxy resins, milk fat, GMS, flavors and fragrances, heavy oil and paraffin oil) purification and so on. The system can also be used to recover organic solvents from industrial effluents. Especially suitable for high boiling point, heat-sensitive, easily oxidized material separation and purification.
Principle of molecular distillation process:
The separation process is as shown in the figure. The material is added from the top of the evaporator and distributed continuously and uniformly on the heating surface through the material-liquid distributor. The film scraper scrapes the product into a very thin, turbulent liquid film. In this process, the light molecules escaping from the heating surface reach the condenser and condense into liquid, and flow down the condenser tube, and discharge through the discharge tube at the bottom of the evaporator; Residues, or heavy molecules, are collected in a circular channel under the heating zone and then discharged through a side discharge tube.
Features:
1. Jacketed pipeline has a good heat preservation.
When the melting point of material is higher than room temperature,will not congeal in pipeline.
2. Continous feeding with high precision gear pump.
The material flow rate does not change with pressure difference,as long as the set speed is the same, the delivery amounts is same.
3. Continous to discharge with two high precision gear pumps.
4. Connection with heater and chiller, convenient and ordered.
5. Large condenser area, high evaporation rate.

Advantages:
1. Short residense time.
2. High evaporation rate.
3. Low processing temperature.
4. Low vacuum.
5. Contionous feeding and discharging.
6. Plug and play.
7. High-thermal conductivity,high efficiency.
8. Durable in use.

Product model	evaporation tube specifications Φ (mm)	Evaporation tube heat transfer area(m2)	Built-in cooling area (m2)	Constant pressure feeding bottle( L)	Sample throughput (L/H)	Motor power (W)	motor speed (rpm)
FZ-60	60	0.05	0.03	1	0.8	140	800
FZ-80	80	0.1	0.25	1	1.5	140	800
FZ-100	100	0.15	0.3	1	3	180	800
FZ-150	150	0.25	0.4	2	5	180	800
FZ-200	200	0.4	0.5	3	8	250	800
FZ-300	300	0.6	0.8	5	10	250	500

SERVICE
We have established some overseas agent office to make the after-sales serivce already ,so it can will be service client in fast response .also in our headquarter service team ,there is a expert team which can support client in 7*24 hours .
1. Customer inquiry and consultation (URS documents)
2. Confirmation of treatment plan (DQ documents &PID Drawing)
3.Quotation offer with the technolgy document (Quotation PI )
4.Engineering and Manufacturing (Prodcution &Quality inspection )
5. Product inspection (FAT documents)
6. Delivery arrangement and loading work (full set Shipment documents)
7. After-sales service (OQ,PQ ,SAT documents)
FAQ
1.What about your factory?
Our factory is located in Wenzhou city ,Zhejiang Province and have more than 15 years experience on machinery making.
2.How will your company control the equipment quality ?
We have a qualified expert team ,we will inspect every production proceed .also Machines will be tested in our plant before shipment .
3.How long the warranty will be?
We provide 1 years warranty for the machine running ,but we will afford whole -life service for the machine .
4.Which kind payment do your company do now ?
We accept Western Union, T/T ,D/P,D/C and irrevocable L/C payable etc.
5.Can we become your distributor in our country?
Yes, we very welcome you! More details will be discussed if you are interested in being our agent.
6.Why we choose "JOSTON "?
1. We enhance the reliability of product's quality and working life .
2. We decrease the consumption cost of the product in the ruuning.
3. We improve research personnel's ability to deliver a creative design;
4. We use leading technologies in our product development and innovation, and thereby increase the competitive advantage of products.
7.Do you supply installation equipment in oversea?
Yes, if need, we can send our engineer to your plant to help you do installation and commission.
8.How can we know the order production status ?
We will arrange the person to take photo or video during manufacturing in every week to make you to know the production status.When goods are finished,we will take detailed photos or video for your checking ,after approve ,then we will arrange shipment .also you can arrange FAT in our plant when the goods is ready here
9.what is kind service do you offer before making order ?
1.according to your company URS ,we will make the design drawing accoridingly.
2.after your company approved drawing ,we will make quotation.
3. final we make agreement on payment terms ,delivery time ,package ,shipment etc.
10.how about your company after-sale serivce ?
1. We provide long-term after-sale service.
2. we can do installation and commission for the equipment in your plant if necessary .
3. Meanwhile, you can call or e-mail us to consult on any relevant question since we have a special line for after-sale service. Alternatively, you can communicate on-line with us to solve any problem.

---
