D Cut Non-Woven Fabric Bag Making Machine Ultrasonic Non Woven Bag Making Machine Price

US$22,000.00-35,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

KTNW-A600, KTNW-A700

Voltage

220V

Seals Mode

Ultrasonic Sealing

Speed

High

Continuous-Rolled

Yes

Sealing & Cutting

Heat-Sealing Cold-Cutting

Layer

Single

Machine Type

Bag Forming Machine

Computerized

Type

Non-Woven Bag Making Machine

Use

Make Non Woven D Cut Bag, U Cut Bag, W Cut Bag

D Cut Bag Making

Yes

Unwind with Auto Loading

Yes

with Auto Length Control System

Yes

Auto Photo Senor Checking System

Yes

Auto Banana Handle Punch System

Yes

Servo Motor Drive System

Optional

Auto T-Shirt Bag Puncher

Optional

Keyword

Non-Woven Fabric Bag Making Machine

Keyword 1

Ultrasonic Non Woven Bag Making Machine Price

Keyword 2

D Cut Nonwoven Bag Making Machine

Keyword 3

Non Woven Bag Making Machine C700

Keyword 4

Ultrasonic Non Woven Fabric Bag Making Machine

Transport Package

Wooden Box Packaging Non Woven Bag Making Machine

Specification

9000 x 2400 x 2100mm

Trademark

KETE

Origin

China

Production Capacity

20set/Month

Product Description

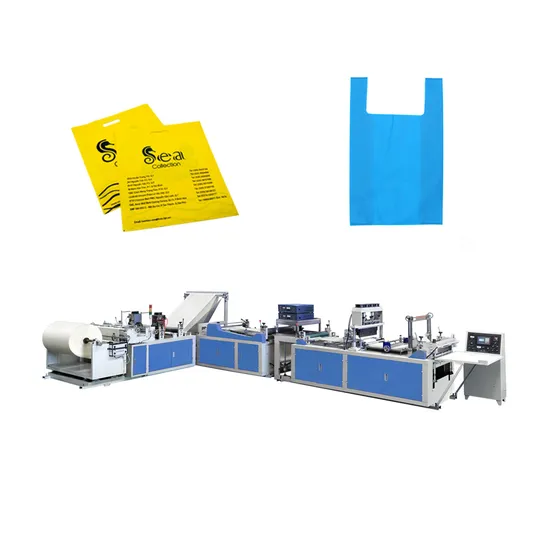

This Non Woven Bag Machine Is Suitable To Use Roll-Type Non Woven Fabrics To Make Die Cut Bags Fully Automatic. Ω. With PLC touch Screen Control System Ω. With Ultrasonic Sealing System Ω. Material Feeding Control by Step Motor Ω. Unwind with Auto Loading and EPC System Ω. With Auto Length Control System Ω. With Automatic Counting System Ω. With Auto Temperature Control System Ω. With Auto Photo Senor Checking System Ω. D Cut Bag with Auto Banana Handle Punch System Ω. Optional: Servo Motor Drive System Ω. Optional: Auto T-Shirt Bag Puncher

Model	KTNW-A600	KTNW-A700
Raw Material	PP or RPET Non Woven Fabric
inished Bag	D Cutting Bag
Max. Raw Material Width	1250mm	1450mm
Max. Raw Material Diameter	800mm	800mm
Material Thickness	30-120gsm	30-120gsm
Bag Making Speed	20-120pcs/min	20-100pcs/min
D-cut Bag Width	100-800mm	100-800mm
D-cut Bag Height	200-580mm	200-680mm
D-cut Bag Top Gusset	40-80mm	40-80mm
D-cut Bag Bottom Gusset	100-200mm	100-200mm
D cut Bag Hole Size	20x80mm	20x80mm
Total Power	10kw	12kw
Machine Weight	3000kg	3500kg
Machine Voltage	220v / 380v	220v / 380v
Machine Size (LWH)	8500 x 2200 x 2100mm	9000 x 2400 x 2100mm
