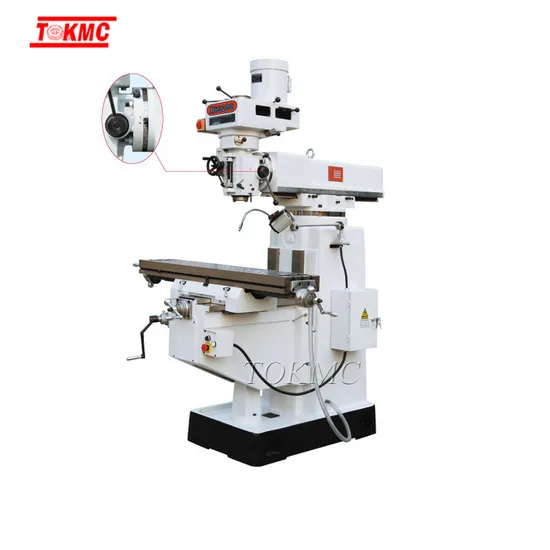

X6325D Universal Swivel Head Manual Milling Machine

US$2,000.00-30,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

X6325D

Structure

Ram

Milling Cutter Type

Three Blade Milling Cutter

Milling Cutter Structure

Integral

Controlling Mode

Artificial

Automatic Grade

Manual

Precision

High Precision

Certification

GS, CE

Condition

New

Machine Table Size

254X1370 mm 10X54" 10X50"

Table Travel

820X420X400mm

RAM Travel

470mm

T-Slot

3-16

Spindle Taper

ISO40

Spindle Quill Feed

0.0015" 0.003" 0.006" mm/Rev

Spindle Motor

3HP 5HP

Transport Package

1516X1550X2080mm

Specification

1490kgs

Trademark

tokmc

Origin

China

HS Code

84595900

Production Capacity

100 Sets/Month

Product Description

Universal milling machine
X6325D
•Rectangular guide way adopted on Y-axis and Z-axis make good rigidity.
•The guide way on saddle is lined with TF wearable material which make machine accuracy stability
•The surface of worktable and 3 axes guide way are hardened and precision ground.
•Milling head adopts 5HP motor, standard spindle 16 speed step pulley head, spindle diameter is 100MM, optional is variable speed

Model	unit	X6325C	X6325D
Table size	mm	254x1270(10"x50") 254x1370(10"x54")
Longitudinal travel	mm	820		820
		920		920
Cross travel	mm	420		420
Vertical travel	mm	400		400
Ram travel	mm	600		500
T-slot		3x16		3x16
Spindle travel	mm	127		127
spindle speed	rpm	16 steps 50HZ:65-4500 60HZ:80-5440 Optional:variable 60-3750
Spindle motor	hp	5		5
Spindle taper		ISO40		ISO40
Auto quill feed	mm	0.04,0.08,0.15 /0.0015",0.003",0.006" revolution
Head swivel L/R		90°		90°
Head tilting F/B		Fix		45°
Weight	kg	1490		1490
