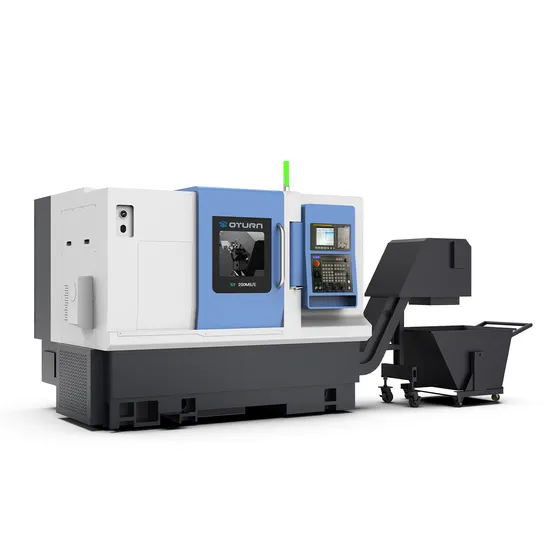

Oturncnc Esy200ms High Performance CNC Lathe Turning Center

Product Description

Product Description
High-strength HT300 one-piece structure casting iron bed, 30-degree step type flat rail structure, application of finite element analysis, excellent overall mechanical rigidity and stability, and can maintain long-term reliable accuracy, processing stability and tool life, stress relief treatment improve accuracy and stability, high-strength roller rail design, drive system adopts screw pre-tension design, improve response rigidity.
Both ends of the workpiece can be processed at the same time in one clamping, which greatly simplifies the manual operation, increases the output and reduces the process. The second spindle is capable of full turning and can express workpieces during machining, reducing cycle times.
1.Direct drive synchronous electric spindle device: magnetic ring type incremental encoder (Sine and cosine) positioning accuracy: 20 arc seconds, C-axis indexing accuracy: 40 arc seconds.
Effectively eliminate the vibration of spindle, and the deflection accuracy of the nose end is within 0.002mm. Improve the surface finish of the workpiece.
The rear-mounted rotor is used to facilitate installation and maintenance.
The spindle motor is equipped with cooling system to suppress the influence of thermal displacement and ensure a constant working temperature of the spindle. The spindle system has passed the strict dynamic balance test. It has good precision retention, high rigidity and high efficiency, so that the machine can not only complete finishing machining, but also rough machining and heavy cutting for users. It is especially suitable for mass production of complex shapes and high finishproduct.
2.High rigidity integral servo power turret. With rapid and precise tool change performance. The tool holder installation used high-rigidity BMT interface, and the power transmission shaft is driven by servo spindle motor.
3.The machine is equipped with THK linear guide rail and ball screw. The heat-treated and precision-ground ball screw can ensure the best precision and durability. Each axis adopts a direct transfer shaft structure and a double-anchor pre-relay method, which can minimize thermal displacement and greatly improve machining accuracy. High rigidity, large size, and heavy-duty linear slide rails can keep the accuracy of the machine unaffected when it is impacted, the displacement is smooth and the noise is low, which can prolong the service life.
4.Standard configuration FANUC system, and the feed drive adopts FANUC servo motor.
5.Perfect hydraulic and lubrication system, using high-quality hydraulic pumps, hydraulic valves and other components, greatly reducing the failure rate. The design of the hydraulic and lubrication system is simple and reliable.
6.Using Taiwan rotary chuck, oil cylinder and automatic chip removal device, which can greatly reduce the labor intensity of the operator and realize safe and efficient production. The above functional components can be controlled by programming. Special fixture.
Product Parameters

Name	Unit	SY200MS
The largest diameter rotating bed	mm	Ф600
Max processing diameter	mm	Ф400
Max.Swing Over Cross Slide	mm	Ф300
Max processing length	mm	290
Bar diameter	mm	Ф45/45
Spindle nose	/	A2-5
Spindle hole diame	mm	Ф56
Max speed of spindle	rpm	5500
Spindle motor power	kw	11
Spindle motor power	Nm	61-125
Hydraulic Cylinder/Chuck	/	6"
Spindle nose	/	A2-5
Spindle hole diame	mm	Ф56
Max speed of spindle	rpm	5500
Spindle motor power	kw	11
Spindle motor power	Nm	61-125
Hydraulic Cylinder/Chuck	/	6"
X/Z/S motor power	kw	2.4/2.4/1.8
X/Z/S travel	mm	240/230/360
X/Z/Y/S axis moving fast	mm/min	20/20/20
Positioning accuracy	mm	±0.005
Repeat positioning accuracy	mm	±0.003
Slide rail type	mm	Roller35
The Tool tower type	mm/pcs	BMT55-12T
Power cutter tower motor	Kw	5
Max speed of	rpm	5000
The tool biock specifications	mm	25x25
Circular cutter holder specification	mm	Ф40
The adjacent tool change time	sec	0.15
Machine size	mm	2600*2100*1900
Machine Weight	kg	4500
Cutting fluid tank volume	L	150
Volume of hydraulic unit box	L	40
Hydraulic oil pump motor power	kw	1.5
Volume of lubricating oil tank	L	2L
Auto lube pump motor power	W	50
Cooling water pump power	W	750

Products Configurations
Company Profile

Quality Control
Our Advantages
FAQ
Q1: How can I choose the most suitable machines?
To help you select the ideal model, please provide your specifications. We can recommend the best model for you, or you can choose one directly. Additionally, sending us product drawings will enable us to determine the most suitable machines for your needs.
Q2: What are the main products of your company?
Our expertise lies in manufacturing a wide range of machines, including CNC Lathe Machines, CNC Milling Machines, CNC Turning Machines, Vertical Machining Centers, Horizontal Machining Centers, and Lathe Machines. We also specialize in turning and milling composite processing, among others.
Q3: Where is your factory located? How can I visit?
We have five factories conveniently situated in Guangzhou, Quzhou, Ningbo, and Guangdong. You are cordially invited to visit us at any of these locations.
Q4: How do you handle transportation?
We offer comprehensive transportation solutions, including DDP, CIF, FOB, and FCA.
Q5: What are the payment terms?
Our payment terms are T/T: 30% initial payment when placing the order, and the remaining 70% before shipment.
Q6: What is the minimum order quantity (MoQ)?
A: The MoQ is 1 set. However, for some low-cost machines, the MoQ may be more than 1 set.
Information We Require:
1. To recommend the most suitable model, we strongly suggest providing the size and material of your workpiece. If possible, sending us the workpiece drawing would be highly beneficial.
2. If you require a CIF price, kindly inform us of the port of destination.

---
