Stainless Steel High Temperature High Pressure Reactor

Product Description

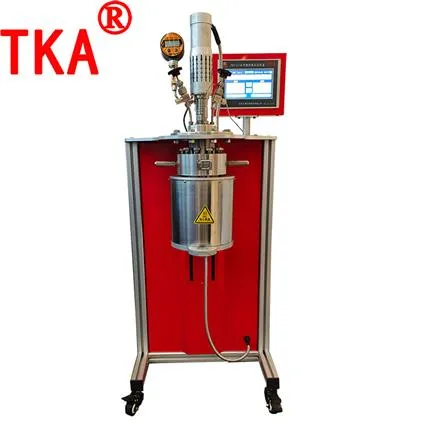

Stainless Steel High Temperature High Pressure Reactor
Functional use: It is necessary to measure pressure, temperature, speed, and add inert gas protection at the same time, stabilize pressure, and realize online sampling or online feeding when this product is used for chemical, chemical, ultra-high temperature, high pressure, and negative pressure synthesis reactions or catalytic reactions. It is utilized to stir reactions in a variety of flammable, explosive, highly poisonous, priceless, and other chemical media under conditions of The best possible leak-free reaction apparatus for reactions including vulcanization, fluorination, hydrogenation, and others. It offers programmable temperature control and super magnetic stirring capabilities.
Examples of applications include the hydrothermal synthesis of single crystals, the reduction of CO2, the reduction of CO2 to methanol, the reduction of CO2 to methane CH4, the reduction and degradation of NOx, and the high-pressure photocatalytic degradation of formaldehyde. the homogeneous process, the supercritical carbon dioxide reaction, the Fischer-Tropsch reaction, the hydrogenation reaction, the polymerization reaction, etc. Features:
1. The kettle cover is fixed, and the external pipeline of the kettle cover does not need to be disassembled every time, saving time and labor.
2. The whole set of aluminum magnesium alloy frame structure is beautiful and easy to move.
3. The framework can be combined freely, with enough space to expand other functional modules.
4. PLC + touch screen or computer control. Control logic and control points can be customized and developed. Product Parameters

Main technical parameters of the reactor
Model	JLGF-5000	Volume	5000ml
Working Pressure	≤12MPa	Design pressure	16MPa
Working Temperature	≤400ºC	Design temperature	450ºC
kettle body material	Titanium	Cooling coil	No(Options)
Sealing methods	Magnetic coupling static seal	Lifting method	Stepper motor drive, automatic lift
Paddle form	Propeller stirring paddle, two-blade stirring
Opening and closing type	KF quick-screw one-button opening and closing	Magnetic coupled condenser	Yes
Heating methods	Large surrounding copper module electric heating (dual control mode), power: 2.5KW
Insulation methods	External insulation of the kettle cavity,the insulation cover is water-resistant,not to easy rust,and has excellent thermal insulation
Open methods	Kettle cover and kettle body separation type,automatic lift opening and closing
Kettle Cover opening	7ports,respectively for stirring,temperature measurement ,pressure display,Safety pressure relief,exhaust,air intake,overpressure,relief pressure12Mpa
The technical parameters of control system
Instrument model spec	7-inch touch true color screen control, PID multi-stage temperature program control
Motor type	220VAC	Motor power	100W
Rotate Speed	0-1000rpm Frequency	Torque	0.5-10Nm
Temperature Sensor mode	K1000 thermocouple	Bottom tube	Close to the bottom of kettle,with a 7um filter
Time and speed and pressure display setting:yes
Heating regulation method	Manual adjustment+Computer adjustment+Intellitent program, temperature control
Heat-up Speed	≤5ºC/Miniute
Accessories
1)Valve(Intake,Outlet,pressure relief		Yes(IKA)
2)Temperature sensor		Yes(Germany WIKA)
3)Pressure sensor		Yes(Germany WIKA)
4)Pressure gauge		Yes(Germany WIKA)
5)Torque wrench sleeve		Yes
6)Samling tube		Yes
7)High pressure inflatable hose		Yes
8)Qualification		Yes
9)Specification		Yes
10)Warranty Card		Yes
11)Inspection report		Yes

Product structure
Packaging & Shipping
Package Detail
1) Wooden packing
2) The goods can be shipped by sea, air or train, small goods or spare parts will be shipped by express.
3) You can choose your own freight forwardwe as well.
4) Door to Door Delivery to save your energy and time. We'll take the all risks during transportation.
Shipping Details
1) AMERICA:3-8 working days.
2) ASIAN:3-8 working days.
3) EUROPE:5-10 working days.
4) OCEANIA:4-9 working days.
5) AFRICA:7-13woring day.
Company Profile
Xi'an Taikang Biotechnology Co., Ltd, is a famous manufacturer of Lab equipment located in the central China. Now has TAIKANG, TKA two well-known brand trademarks. The main products include ultra-high temperature and high pressure reactor, high pressure photochemical reactor, supercritical high pressure reactor, high pressure glass reactor, micro high pressure reactor, high pressure ultrasonic reactor, Ultra-high temperature hydrothermal synthesis reactor, photocatalytic reactor, visual catalytic reactor, hydrothermal synthesis reactor, rotary evaporator, parallel synthesis reactor, high and low temperature circulator, high and low temperature high pressure tubular reactor and other equipment and so on.
Specialize in this field for more than 20 years,TKA brand instrument has own high reputation in more than 70 countries and regions, provide technical support for tens of thousands organizations to solve problems within their research, special for university, research institutes, industries, inspection agencies, etc. Promoting technology progress and improving human life is TKA social mission.
We welcome new and old customers from all over the world to contact us for future business relationships and achieving mutual success!! Exhibition Show
Certifications
FAQ
Q1:Are you trading company or manufacturer?
A1:We are professional manufacture of lab equipment and we have our own factory which is a high-tech enterprise integrating R&D, production and sales. And welcome to visit our factory.
Q2: How long is your delivery time?
A2: Usually, delivery time is 30-45 days after receiving your payment.
Q3:How to shipping the replacement parts?
A3:We will according the actual situation to choose the suitable shipping ways. For small parts we shippin by Express.
Q4: How about your quality warranty ?
A4: Normally all TKA products are supplied with a warranty of 12 Months from the date of shipment.
Q5: Do you accept OEM and ODM orders?
A5: Yes,We accept.
Q6:What is your terms of payment?
A6:Payment≤15,000USD, 100% in advance. Payment≥15,000USD, 70% T/T in advance, balance before shipment.
(If you are concerned about payment security for the first order, we advise you can place Trade Assurance Order via Made in China. you will get 100% payment refund if we can't meet agreed delivery time.)
Q7:Can we visit your factory?
A7: Welcome visit our factory.

---
