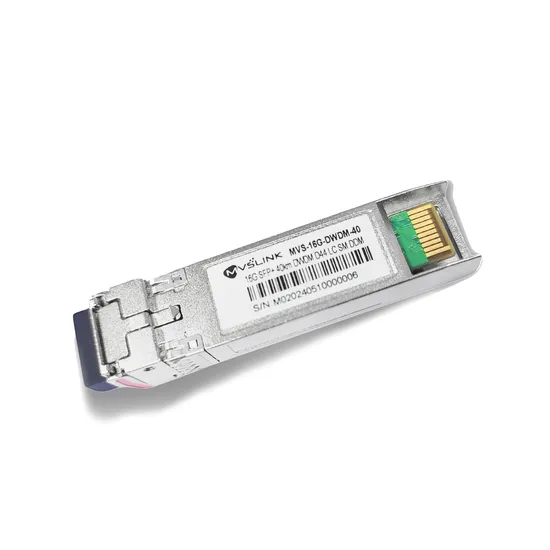

Cisco Compatible 16gbase SFP+ DWDM 40km SMF Optical Transceiver Module 16g DWDM

Product Description

Product Description
Cisco Compatible 16gbase SFP+ DWDM 40km SMF Optical Transceiver Module 16g DWDM
Cisco Compatible 16G SFP+ DWDM transceiver supports up to 40km link lengths over single-mode fiber (SMF) via an LC duplex connector. This transceiver is compliant with SFF-8431 and SFF-8432 MSA standards. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be deployed in the DWDM networking equipment in metropolitan access and core networks.
TRANSMITTER CHARACTERISTICS (TC=25°C, UNLESS OTHERWISE NOTED)

Parameter	Symbol	Unit	Min	Max
Storage Temperature Range	Ts	oC	-40	85
Relative Humidity	RH	%	0	95
Maximum Supply Voltage	Vcc	V	-0.5	4.0

GENERAL SPECIFICATIONS (TC=25°C, UNLESS OTHERWISE NOTED)

Parameter	Symbol	Unit	Min	Typ	Max
Power Supply Voltage	Vcc	V	3.14	3.3	3.46
Bit Rate	BR	Gb/s		14.025
Bit Error Ratio	BER				1*10-12
Max Supported Link Length	L	Km			40

Detailed Photos
Product ParametersProduct Features
* Operating data rate up to 14.025Gbps
* Up to 40km transmission distance
* DWDM EML Laser and PIN receiver
* LC duplex connector
* Hot pluggable 20pin connector
* Low power consumption
* Single +3.3V±5% power supply
* Compliant with SFF-8472
* Fully RoHS Compliant
* Case operating temperature
Commercial: 0°C to +70°C
Applications
Data Center Backbone
Ethernet Switches
High-speed Servers
High-performance Computing Clusters
SAN, Routers, Hubs, Load Balancer
Fibre Channel 16GFC
Packaging & Shipping
Company ProfileAbout Suzhou Weimei Electronic Technology Co., Ltd
Mvslink reisted and established in 2012, headquartered in Suzhou, with research and development laboratories in Shanghai, a production factory in Suzhou, and a sales office in South Korea.
Focus on the rapidly growing markets of cloud computing data centers, telecommunications, and 5G wireless, as well as consumer AOC products. Committed to building a semiconductor optoelectronic integration platform and aiming to become a leading brand in the global optoelectronics field.
FAQQ: My device is Cisco Nexus C9396PX, is this suitable?
A:I have the same device and the module is fully compatible.
Q: Can l get a sample first?
A: We do offer samples before making any production so that the production is up to the buyer's ex-pectation. Samples can be delivered within 5-8 days.
Q: What is your MOQ?
A: 1 piece is available. We can also provide free samples for our valued customers.
Q: Does this product get hot after a long time of use?
A: Hi, so far, I haven't seen that, the transceivers is hot-pluggable, safe ensurance, I would highly recommend.
Q:What's the 16G DWDM SFP+ transceivers supported distances?
A: The 10G DWDM SFP+ 40km transceivers support 40km single mode fibers.

---
