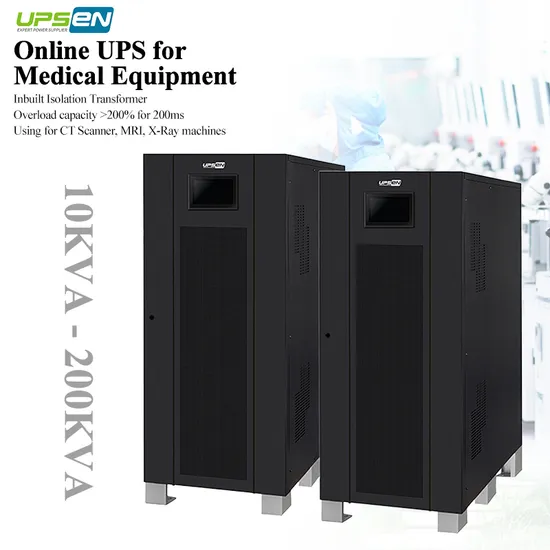

Three Phase 380V 400V 415VAC Low Frequency Online UPS 10k-200kVA with Cheap Price

Product Description

Product Description Three Phase 380V 400V 415VAC Low Frequency Online UPS (10K-200kVA)
1: UPS with Three Phase 380/400/415VAC or 190/208/220VAC Input/Output
2: Low Frequency UPS with IGBT inverter technology
2: Advanced digital circuit UPS Power system
3: EPO function for UPS
UPS Application
Large-medium computer data center, industrial process and other mission-critical equipment
UPS Key Features Online double-conversion. DSP technology guarantees high reliability. True galvanic isolation transformer design. Control designed to withstand all kinds of loads. Intelligent battery management to prolong battery lifecycle. Redundant fan design and independent ventilation enhance durable operation under harsh environment. Adjustable battery numbers. Accept dual-mains input. Parallel operation with up to 4 units (option). Variety of communication options available.

MODEL	Ls3310K	Ls33 20K	Ls33 30K	Ls33 40K	LS33 60K	Ls33 80K	LS33100K	LS33 120K	LS33160K	Ls33 200K
CAPACITY	10KVA /8KW	20KVA 16KW	30KVA /24KW	40KVA /32KW	6OKVA 48KW	8OKVA 64KW	100KVA /8OKW	120KVA /96KW	16OKVA 128KW	200KVA 160KW
INPUT
Norminal Voltage	3x 380VAC/40OVAC(3Ph+N)
Acceptable Vollage Range	305VAC~46OVAc
Frequency	46-54Hz or 56-64Hz
INVERTER
Norninal Voltage	3x 380VAC/40oVAc(3Ph + N)
Precision	Stationary:1%Transitory: 5%(load variations 100-0-100%)
Frequency	50/60 Hz synchronised1 %with mains absent0.1Hz
Max.Synchronisation Speed	±1Hz's
Waveform	Pure Sinewavo
Total Harmonic Distortion (THDv)	<2%(Linear Load;<5%(Non-linearLoad)
Phase Displacement	120°±1%(balanced load);120°±2% (imbalances 50% of the load)
Dynamic Recovery Time	1 cycle at 98 %of the static value
Admissible Overioad	110%for 1omin;150% for60sec; >160% for 200ms
Admissible Crest Factor	3:1
Admissible Power Factor	0.6~1(inductive or capacitive)
lmbalance Output Voltage@100% Unbalanced Load	<1%
Current Limit	High overload,short-circuit: RMS Voltage Limit;High Crest-Factor current:Peak Voltaga Limit
STATIC BYPASS
Type	Solid state
voltage	3 x380VAC140OVAc(3Ph+N)
Frequency	50/60 Hz
Activation Criterion	Microprocessor control
Transfer Time	zero
Admissible Overload	150%lor 1 hour;180% for 30sec;-200% tor 200ms
Transfer to Bypass	lmmediate, for overloads above 160%
Retransfer	Automatic after alarm clear
MAINTENANCE BYPASS
Type	Without interruption
Voltage	3 .400v(3Ph+N)
Frequency	50/60Hz

Overall Efficiency	Line Mode	90%	91%		92%		93%
	Battery Mode	90%	91%		93%		93%
BATTERY& CHARGER
Batery Type and Numbers		12vpgx16	12vDc- 32 pcs (29-32 pcs adjustable)
Nominal Battery Voltage		192vDc	384 voc(Based on 32pcs batteries)
Charging tothod		ccrcv
Precision		±1%
Charging Current		Max.:40A
Charging Voltage		216vDc	432 vDc(Based on 32pcs batteries)
PHYSICAL
Dimensions,D x'Wx H(mm)		656x405x817	656 x405×941	840x432x 1140		975x 554 × 1286		1200x910×16BO	1500x 1140×1800
Net Weight (Kgs)		180	205	295	330	451	519	950	1350

Company Profile Shenzhen UPSEN Electronic CO., Ltd. locates in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.
We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center,Telecom, Bank, Hospital, Transportation, Industry, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.
We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.
We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems.We are sure UPSEN can achieve more successes with our efforts and your support.
Our Advantages 1: High working efficiency and production, to be sure compeitive price
2: Strict material quality control, to be sure all materials meet CE standards
3: Independent test equipment suitable for most international standard tests

4:Each process been tested before assembling which can assure low fault rate, and improve shortages
5: Professional R&D Engineers with average bachelor degree
6: Products average upgrading every 1.5~2 years
7: 1% free unit or 2% free parts for timely warranty service
8: Free technical support before and after sales

Detailed Photos
Detail Images
FAQ Q1. What is packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
We can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 7-20 days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q5. Can you OEM and ODM Service?
A: Yes, we can provide free OEM Service, and ODM Service is available for volume order too.
Q6. Do you test all your goods before delivery?
A: Yes, all our products have more than 6~8 hours for againg, and strict test before dispatch
Q7. Do you have any MOQ limit?
A: Low MOQ, 5 pieces for sample checking is available.
Q8. Can I have a sample order?
A: Yes, sample order is acceptable to test and check quality for the first cooperation
Q9. How to proceed with an order?
A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirm the samples and places deposit for formal order. Finally, We arrange production.

---
