Automatic Small Sachets Spices/ Coffee Powder/ Washing Powder/Pouch Powder Packaging/Packing Machinery

Product Description

Product Description

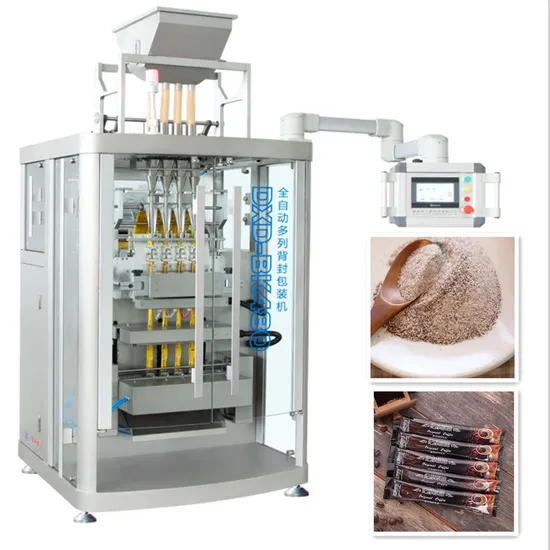

DXD-BK480 Granule Back sealing & multi-line packing machine
Characteristic:
1. advanced performance, high strength, low noise, compact structure, stable operation, easy maintenance, long service life.
2 the whole machine adopts PLC control, servo tracking synchronous linkage, reliable performance, convenient operation, high degree of automatic control.
3 high degree of automation. This machine from the longitudinal cutting, longitudinal sealing, transverse sealing, filling, printing, notch cutting, cross cutting, until the finished bag output can be completed at one time.
4 adopt the combination sealing knife as sealing mould. Back sealing, upper and lower transverse sealing alternating multiple times once sealing. Sealing tightly. And with high packing speed, pouch shape smoothly, delicate appearance, high packing efficiency.
5 quick and convenient adjustment. The bag length can be adjusted without changing the mould. And the vertical seal, transverse sealing, filling, cutting and other implementing agencies can be adjusted through the man-machine interface.
6 filling measurement accuracy. In the case of powder materials, it is specially designed to push and pull the whole metering plate, and each bag can be adjusted conveniently and accurately.
7 in the forming process of the packaging bag through the PLC control, so that each actuator can be accurately automatic positioning.
8 photoelectric tracking system is adopted to ensure the automatic calibration of the packaging bag, and has the function of automatic counting.
9 strong adaptability to the package material, the sealing temperature of the machine has the function of automatic control, and the control precision is high (about 1C degrees). Can adapt to domestic and foreign production of a variety of packaging films, such as PET/AL/PE, PET/PE, NY/AL/PE, NY/PE, etc..
10 additional features can be added, such as the right to cut off the choice of cutting machine, dashed knife, serrated knife, etc.. Typing code can be selected ink wheel printer, etc., and the selection of various alarm requirements.Usage:
This machine is suitable for the medium and small bags automatic packing in the medicine, food, daily chemical industry and so on. Such as: small pills, granules, coffee, sugar, salt, monosodium glutamate, small granular pharmaceutical preparations, etc..

Model	DXD-BK480
Lanes number	4 lanes
Packing material	GRANULE
Packing speed	20-30 bags/min/lane(according to detail material)
Filling capacity	1-50gram/bag
Packing film	PET/AL/PE,PET/PE,NY/AL/PE,NY/PE etc
Bag size	L:40-170mm
	W:24-60
Film width	Max.420mm
Sealing type	Back sealing stick type bag
Power supply	380V 50HZ 3P 4 W(do as customer's request)
Power	9KW
Air consumption	0.8MPA 0.8m3/min
Dimension(mm)	1800X1300X2500mm
Weight	1800KG

.
machine adopts the most advanced sheet feed in the current volume is used. This type of feeding machine is mainly used for filling materials such as particles and small pellets, and has fast running speed. High precision, easy adjustment, convenient disassembly and washing characteristics etc.
Each row is equipped with repeated push-pull feeding, the metering can be adjusted independently, the metering accuracy is high, and each row of bags can be conveniently fine and accurate metering adjustment.
Transverse sealing device
Touching screen showing English and Chinese language for export.
Left and right correction, photoelectric version device
Using PLC control, servo motor drive, photoelectric tracking, automatic correction system to ensure packaging bag double-sided printing pattern alignment
The horizontal seal is driven by a servo motor to drive the screw rod, which improves the accuracy of the bag length error and the noise is smaller.
Longitudinal sealing
Batch numbers are available in a variety of ways: usually by hard pressing one side of the steel, another side of the silica gel to make the steel characters clearer, while ensuring the sealing performance of the transverse seal. You can also use spray code, laser code and ribbon code.
Transverse cutting knives can be used in the following ways: flat cutting, irregular cutting, fillet cutting and tooth profile cutting.
Exit Conveyer
Vacuum feeder----Automatic material loading device: the place between cover and hopper can be sealed and convenient for opening; the cover have a material feeding opening with the diameter of 80mm, which can connect with the feed opening of vacuum appending machine for automatic appending (the model of vacuum material loading machine is QVC-2).

---
