288 Core Self-Supporting ADSS Fiber Optic Communication Cable for Aerial

Product Description

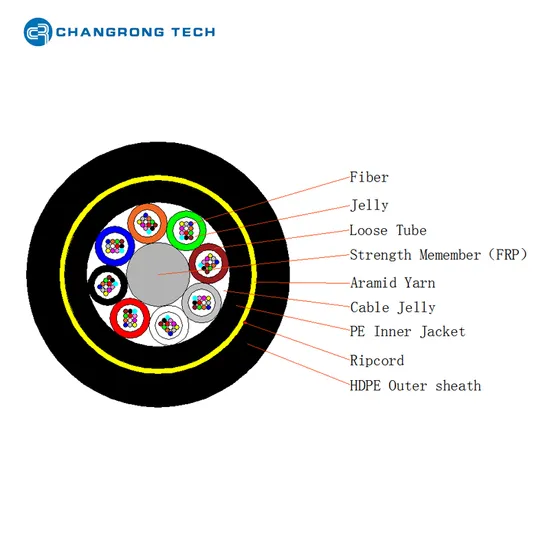

Cross Section
Detailed Photos
Product Description
288 Core Self-Supporting ADSS Fiber Optic Cable for Aerial Deployment Experience seamless communication with our 288 Core Self-Supporting ADSS Fiber Optic Cable. Designed by Anhui Changrong Optical Fiber & Cable Technology Co., Ltd., this high-quality cable is perfect for aerial deployment in various communication applications.
Featuring a loose tube made of high modulus plastic and filled with gel, our cable ensures optimal performance. The tubes, along with fillers, are stranded around a non-metallic strength member, forming a sturdy cable core. To enhance durability, an aramid yarn is armored around the inner jacket. The cable core is also filled with a water blocking compound, and a PE inner jacket is extruded for added protection.
Our self-supporting ADSS fiber optic cable offers numerous benefits. Its lightweight and small diameter reduce the load caused by ice and wind, as well as the load on towers and back-props. With a large span length of up to 1000 meters, it provides flexibility in installation. Additionally, it boasts excellent tensile strength and temperature performance.
One of the key advantages of our cable is that it can be installed without shutting off the power, ensuring uninterrupted operations. Whether you need high capacity fiber optic cable for communication, FTTH fiber optic cable, or an outdoor fiber optic cable, our 288 Core Self-Supporting ADSS Fiber Optic Cable is the ideal choice.
Application
Product Name: 288 Core Self-Supporting ADSS Fiber Optic Cable for Aerial Deployment
Description: This high-quality fiber optic cable is designed specifically for aerial installation in electric fields. Its customizable structure makes it suitable for different spans. Perfect for communication and FTTH installations.
Product Parameters

Counts	2-30	32-36	38-60	62-72	74-96	98-120	122-144	146-216	218-288
Max.fiber counts per tube	6	6	12	12	12	12	12	12	12
Units(Tubes or Fillers)	6	6	6	6	8	10	12	18	24
Cable Diameter(mm)	9.7	9.7	9.7	9.7	11.2	12.3	13.5	13.7	16.3
Weight(Kg/km)	74	75	75	75	100	120	143	142	195
Fiber Type	G652D G655 G657 50/125 62.5/125
Tensile Strength(N)	Long/Short Term:1900/4800
Crush Resistance(N/100mm)	Long/Short Term:300/1000
Bending Radius(mm)	Static/Dynamic:10D/20D
Temperature(ºC)	Storage /Operation:-40ºC~70ºC

Our Advantages
Packaging & Shipping
FAQ
288 Core Self-Supporting ADSS Fiber Optic Cable for Aerial Deployment Experience high-speed and reliable communication with our 288 Core Self-Supporting ADSS Fiber Optic Cable. Designed for aerial deployment, this durable and high-quality fiber optic cable is perfect for various telecommunication applications.
With a core count of 288, this high-capacity fiber optic cable ensures efficient and seamless data transmission. It is suitable for FTTH installations, providing a reliable connection for homes and businesses.
Our self-supporting ADSS cable is specifically engineered for outdoor installations. Its all-dielectric construction eliminates the need for a metallic support system, making it easy to deploy and maintain.
Key Features:
288 core count for high-capacity communication
Self-supporting design for easy aerial deployment
All-dielectric construction eliminates the need for a metallic support system
Durable and reliable for long-lasting performance
With a 25-year warranty, you can trust in the quality and longevity of our fiber optic cable. Our company, Anhui Changrong Optical Fiber & Cable Technology Co., Ltd., is a real manufacturer based in Chuzhou Anhui Province, China. We have our own fiber production lines and source preforms from reputable brands like YOFC and FIBERHOME.
As a customer-oriented company, we accept small orders and support new projects. Our annual production capacity for outdoor fiber optic cable is 35,000 KM, and for FTTH/FTTX/FTTA cable, it is 1,200,000 KM per year.
We are ISO9001 and ISO14001 certified, ensuring the highest quality standards in our products. We offer flexible payment options, including T/T, L/C, Western Union, and Paypal.
Experience seamless communication with our customized products and logo options. Simply send us your drawing, and we will provide OEM and ODM services to meet your specific requirements.

---
