commodity Garbage Can Plastic Inject/Injection Mould/Moulding Machine 580ton

Product Description

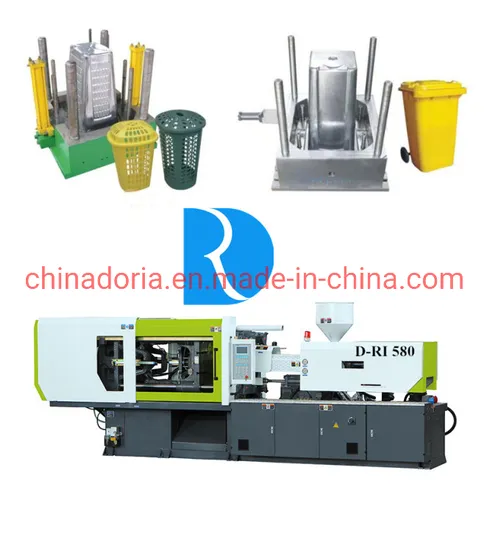

Specification of D-RI580 plastic injection moulding machine
1. Product details:
2. The introduction of D-RI580's accessory equipments
2.1, size of the machine: 9400mm*2300mm*2800mm mm;
2.2, Shot weight: 1778g;
2.3, the base of the machine is welded by U-bar Q235B 10#. Outer structure is made of A3 plate. The appearance is painted, attractive and durable.
2.4, Hydraulic Pump with good quality imported and Hydraulic solenoid valve (Yuken, Japan) could supply the hydraulic pressure steadily and with high pressure precision to the machine.
2.5 Hydraulic Motor (dynamic, Italy) could plastify raw material equally and make the best injection molding.
2.6, The Lubrication's system of the machine is focused, quantitative and automatic. The system could lubricate the each part of machine timely and guarantee the life of machine.
2.7, Limit Switches (OMRON) could make the machine work steadily.
2.8, linear transducer (Fannys, France) could ensure the positional precision and stability when the machine is working.
2.9, Temperature modules compose the heating system to control and adjust temperature. The heating control contactor (Schneider, France) could ensure the heating steadily and heating precision.
2.10, PLC (HONGXUN, Taiwan) is easy to operate, high steadily and convenience maintenance.
3. Technical data of D-RI580

Model Item	D-RI580
Screw diameter(mm)	80
Injection pressure(Mpa)	185
Shot weight(PS) (g)	1778
Screw L/D ratio	20.5:1
Screw stroke (mm)	385
Screw speed(r.p.m)	5-130
Injection rate (cm3/s)	400
Plasticizing capacity(g/s)	68
Clamping stroke(tons)	580
Mould clamping stroke (mm)	850
Max. daylight opening (mm)	1700
Mould thickness (Min.-Max.) (mm)	350-850
Space between tie-bars (mm)	860*860
Hydraulic ejection force (tons)	16.6
Hydraulic ejector stroke (mm)	250
Max. pump pressure(Mpa)	16
Motor power(KW)	18.5+37
Heater power(KW)	28
Temperature control zones	6+1
Tank capacity (L)	1300
Machine dimension(L*W*H)	9400mm*2300mm*2800mm
Machine weight(ton)	32

4. Pictures worshop of machine:
5. Warehouse of machine:
5. About us:
Taizhou Doria Plastic Equipment Co., Ltd. is located the town of plastic products and mould in China, which is one manufacturer owns special production teams, advanced production equipments and rich production experience.
The main products are following: Automatic & semi-automatic blow moulding machine, PET preform, plastic injection machine, preform moulds, bottle moulds, commodity moulds and correlative products.
Based on "Quality is first; Honor for the honest", we always continue development and innovation to witness the maturity of industrial chain of products and improve the quality of products continually. Untiring effort makes the products, especially for 5gallon blow moulding machine, 5gallon PET preform and commodity moulds are widely accepted by our customers.
Welcome everyone to visit us; we hope we will have good chance to cooperate!
6. Location:
No.362 Lingxiage Village
Xicheng Street, Huangyan
Taizhou, Zhejiang
China
