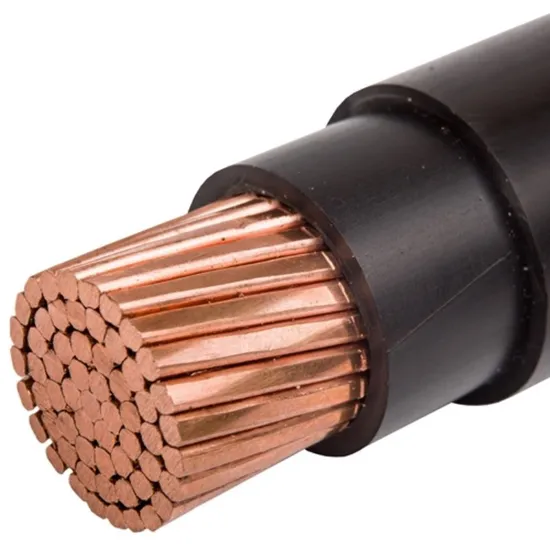

Zr-Yjv 0.6/1kv 1.5-400mm² 1-5 Core Low Voltage Flame Retardant Cross-Linked Copper Core Power Cable

Product Description

Zr-Yjv 0.6/1kv 1.5-400mm² 1-5 Core Low Voltage Flame Retardant Cross-Linked Copper Core Power Cable
1. Standard
IEC 60502, 60228, 60332, 60331
DIN VDE 0276-620
HD 620 S1: 1996
DIN EN 60228 class 2 (construction)
2. Application
This cable is used for fixed installations, such as distrubution networks or industrial installations. It can be installed in
cable duct, trench or directly buried in earth.
3. Product Description
1) Rated Voltage: 0.6/1KV 3.6/6KV 6.5/11KV, 11KV, 33KV, 66KV, 132KV
2) Max. working temperature: 90 °c
3) Max. temperature during short circuit (≤5S): 250 °c
4) Conductor: class 1, 2 copper or aluminum
5) Sectional area: 25 - 630mm2
6) Insulation: XLPE
7) No. of cores: 1, 3
8) Armor: steel wire or steel tape for 3 core cables and non-magnetic material for single core
9) Oversheath: PVC
10) Min. beding radius: 15 times cable radius for single-core cables and 12 times for multi-core ones
11) Max. conductor DC resistance at 20°c:

Model	Name	Application site	Section area	Cores	Rate voltag
VV	Copper Conductor PVC insulated PVC sheathed power cable	Indoors, in tunnel or cable trench, unable to bear external mechanical forces. Single-core cables laid in magnetic ducts are not allowed .	10 16 25 35 50 70 95 120 150 185 240 300 400	1 2 3 4 5 3+1 4+1 3+2	0.6/1kv 8.7/15kv 12/20kv 18/30kv 21/35kv
VLV	Aluminum Conductor PVC insulated PVC sheathed power cable
YJV	Copper Conductor XLPE insulated PVC sheathed power cable
YJLV	Aluminum Conductor XLPE insulated PVC sheathed power cable
YJY	Copper Conductor XLPE insulated PE sheathed power cable
YJLY	Aluminum Conductor XLPE insulated PE sheathed power cable
VV22	Copper Conductor PVC insulated steel tape armored PVC sheathed power cable	Indoor, tunnel, cable trench or underground laying, able to bear external mechanical forces, but can not afford a big pull.
VLV22	Aluminum Conductor PVC insulated steel tape armored PVC sheathed power cable
YJV22	Copper Conductor XLPE insulated steel tape armored PVC sheathed power cable
YJLV22	Aluminum Conductor XLPE insulated steel tape armored PVC sheathed power cable
YJV23	Copper Conductor XLPE insulated steel tape armored PE sheathed power cable
YJLV23	Aluminum Conductor XLPE insulated steel tape armored PE sheathed power cable
VV32	Copper Conductor PVC insulated steel wire armored PVC sheathed power cable	Indoors, in tunnel, cable trench, well or burying, able to bear external mechanical forces and a certain tension.
VLV32	Aluminum Conductor PVC insulated steel wire armored PVC sheathed power cable
YJV32	Copper Conductor XLPE insulated steel wire armored PVC sheathed power cable
YJLV32	Aluminum Conductor XLPE insulated steel wire armored PVC sheathed power cable
YJV33	Copper Conductor XLPE insulated steel wire armored PE sheathed power cable
YJLV33	Aluminum Conductor XLPE insulated steel wire armored PE sheathed power cable
